Technical Specifications
Grayhill 62AG22-L5-P technical specifications.
General
Built in Switch
Yes
Current Rating
30mA
Detent
Yes
Encoder Type
Optical
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Mount
Panel
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
Series
62AG
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Grayhill 62AG22-L5-P Datasheet
Download the complete datasheet for Grayhill 62AG22-L5-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

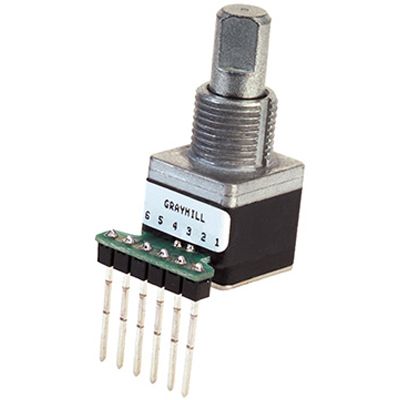

Product Images
