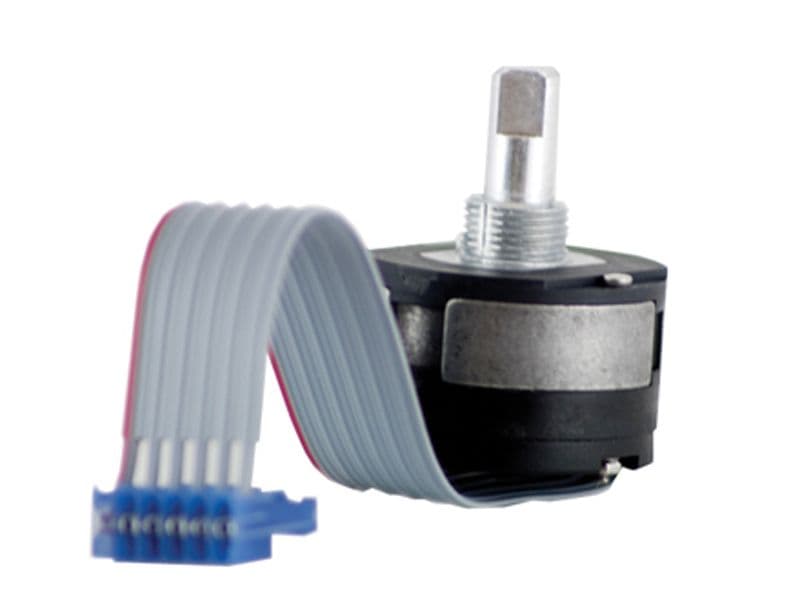

The 62M15-M4-040CH is a surface mount, cable-terminated optical encoder switch with a built-in switch and detent. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The encoder is of the optical type and provides a quadrature, incremental output. It is RoHS compliant and has a tin contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 62M15-M4-040CH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | Yes |
| Contact Plating | Tin |
| Detent | Yes |
| Encoder Type | Optical |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, Cable |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 62M |
| Termination | Cable |
| RoHS | Compliant |
Download the complete datasheet for Grayhill 62M15-M4-040CH to view detailed technical specifications.
