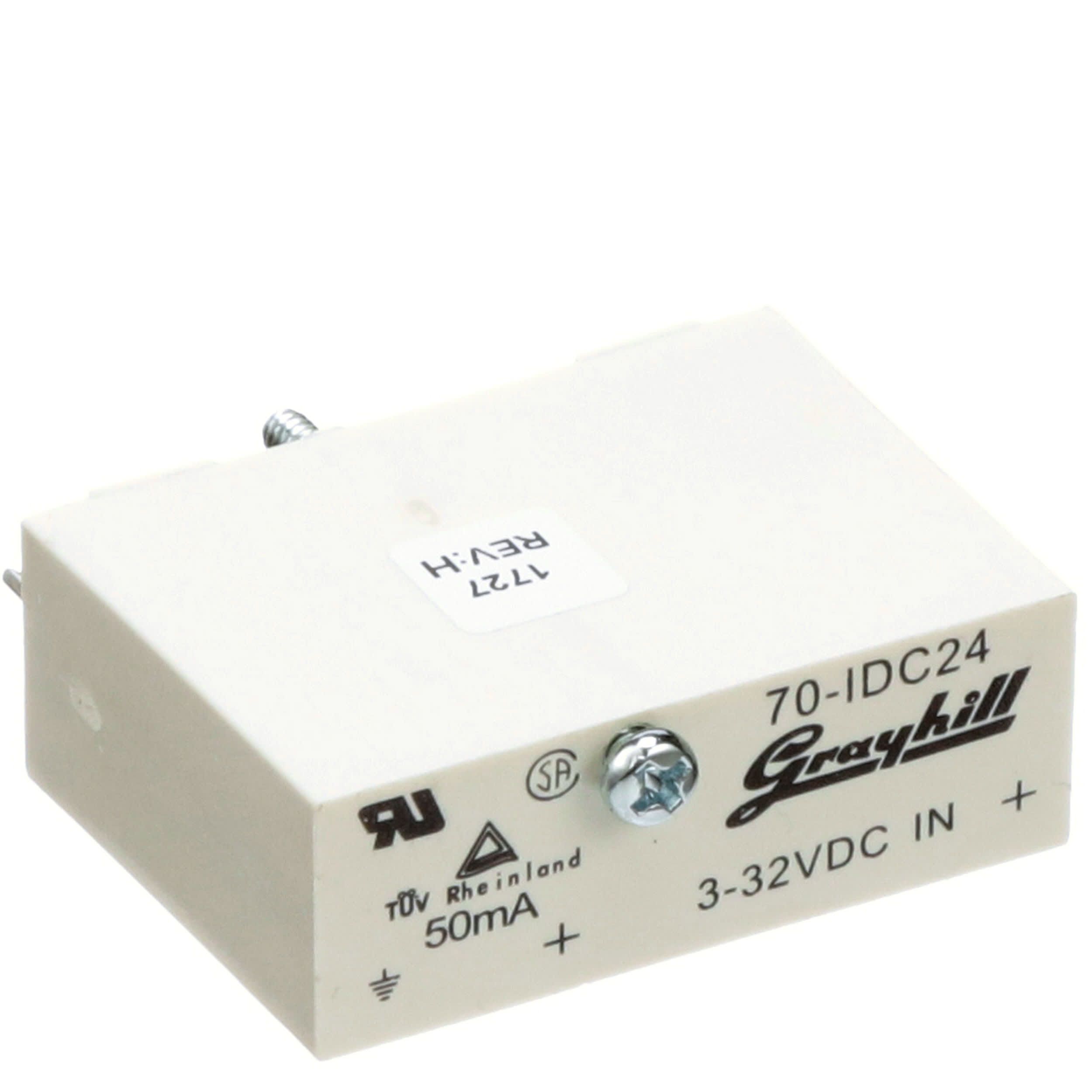

Solid State Relay (SSR) module with DC input, featuring a 3V to 32V DC input voltage range and 18mA input current. This SPST relay offers a 50mA maximum output current and 10mA output current, with turn-on delay of 0.2ms and turn-off delay of 0.4ms. Operating across a -40°C to 100°C temperature range, it supports screw, through hole, rack, and PCB mounting with PC pin termination. Approvals include UL, CSA, CE, and TUV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70-IDC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | White |
| Current Rating | 18mA |
| Depth | 0.6inch |
| Height | 31.8mm |
| Input Current | 18mA |
| Input Resistance | 1.8kR |
| Input Type | DC |
| Lead Free | Contains Lead |
| Length | 1.7inch |
| Max Input Voltage (DC) | 32V |
| Min Input Voltage (DC) | 3V |
| Max Input Voltage | 32V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Mount | Screw, Through Hole, Rack, PCB |
| Output Current | 10mA |
| Primary Type | MODULE |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.4ms |
| Turn-On Delay Time | 0.2ms |
| Width | 1.25inch |
| RoHS | Not Compliant |
