General I/O Relay Module with 1 channel, featuring DC input type and SPST throw configuration. Input specifications include 18mA max input current and 3-32V DC input voltage range. Output capabilities offer 10mA output current at 5V output voltage, with a 50mA max output current rating. This module supports through-hole and PCB mounting, operates within a -40°C to 100°C temperature range, and boasts a 4000Vrms isolation voltage. Approvals include UL, CSA, CE, and TUV.
PackageModule
Voltage Rating60V
Current Rating50mA
MountingScrew, Through Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 70-IDC5 technical specifications.
General
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | White |
| Current Rating | 50mA |
| Depth | 0.6inch |
| Height | 31.8mm |
| Housing Color | White |
| Input Current | 18mA |
| Input Resistance | 1.8kR |
| Input Type | DC |
| Lead Free | Contains Lead |
| Length | 1.7inch |
| Max Input Current | 18mA |
| Max Input Voltage (DC) | 32V |
| Min Input Voltage (DC) | 3V |
| Max Input Voltage | 126.5V |
| Min Input Voltage | 92V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Mount | Screw, Through Hole, PCB |
| Number of Analog Inputs | 1 |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 10mA |
| Output Voltage | 5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.4ms |
| Turn-On Delay Time | 0.2ms |
| Voltage Rating | 60V |
| DC Rated Voltage | 32V |
| Width | 1.25inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Grayhill 70-IDC5 Datasheet
Download the complete datasheet for Grayhill 70-IDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

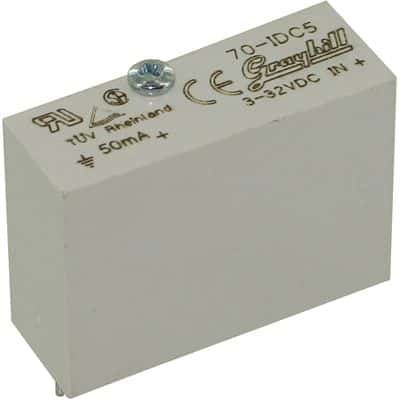

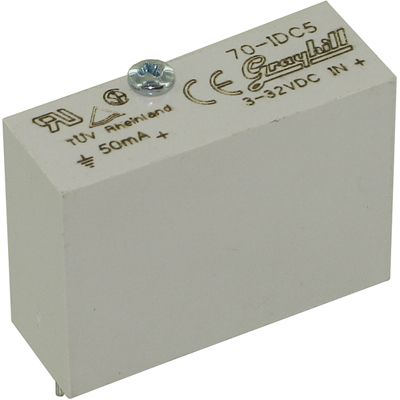

Product Images
