DC I/O Relay Module, 32VDC In, 50mA Out, 1.8kR In, 1ch, SPST, Thru-Hole

Grayhill

70-IDC5B

Name: 70-IDC5B Grayhill
Brand: Grayhill
SKU: 70-IDC5B

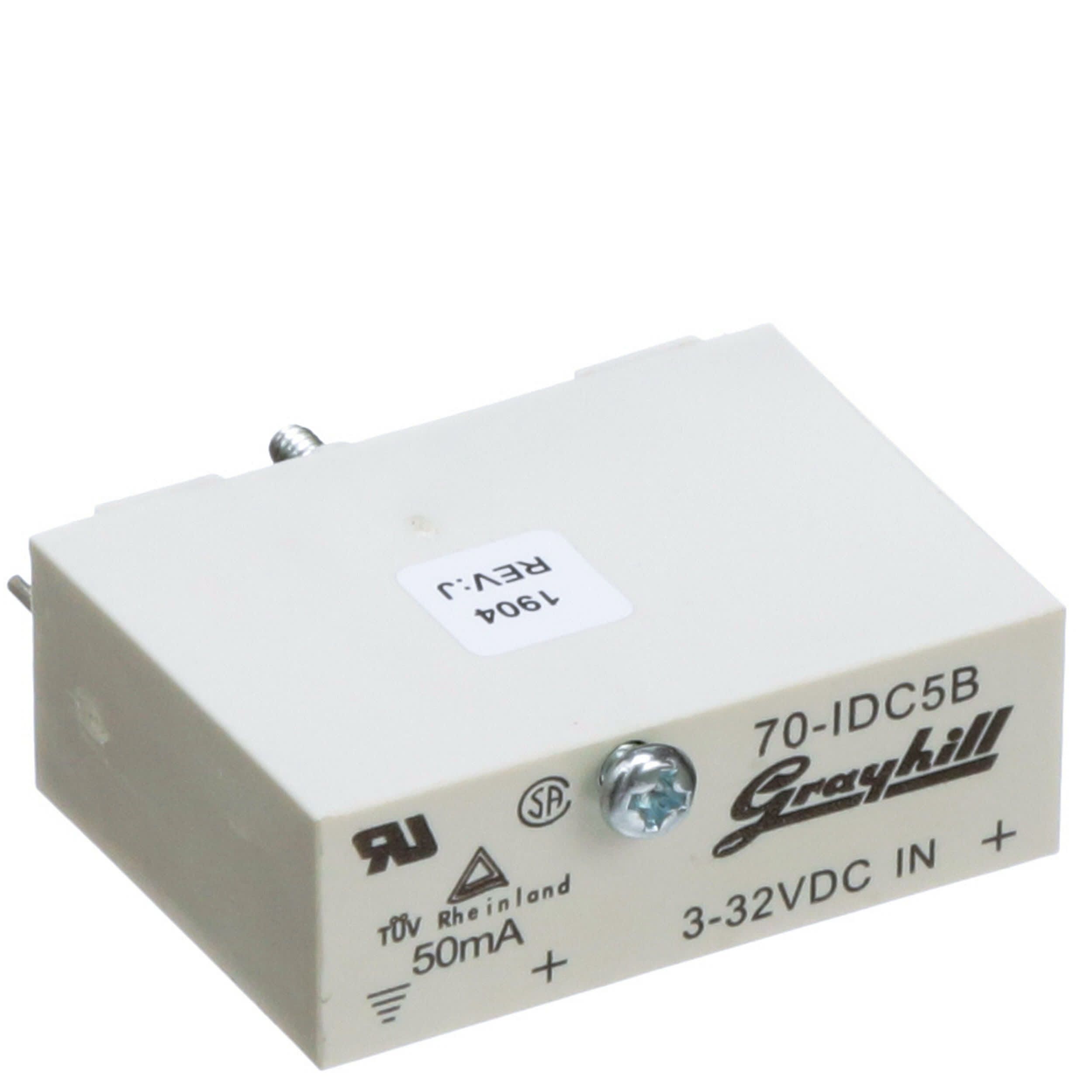

DC I/O Relay Module, 32VDC In, 50mA Out, 1.8kR In, 1ch, SPST, Thru-Hole

Single-pole, single-throw (SPST) I/O relay module with 18mA input current and 32V DC maximum input voltage. Features 1.8kΩ input resistance and a 3V DC minimum input voltage. Operates across a -40°C to 100°C temperature range with 4000Vrms isolation. Offers 50mA maximum output current and 6V output voltage. Termination via PC pins, suitable for screw, through-hole, and PCB mounting. Approvals include UL, CSA, CE, and TUV.

PackageModule

Current Rating18mA

MountingScrew, Through Hole, PCB

Quick Jump:

Technical Specifications

Grayhill 70-IDC5B technical specifications.

General

Approvals	UL, CSA, CE, TUV
Package/Case	Module
Color	White
Current Rating	18mA
Depth	0.6inch
Height	31.8mm
Input Current	18mA
Input Resistance	1.8kR
Input Type	DC
Lead Free	Contains Lead
Length	1.7inch
Max Input Current	18mA
Max Input Voltage (DC)	32V
Min Input Voltage (DC)	3V
Max Input Voltage	32V
Min Input Voltage	3V
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Output Current	50mA
Mount	Screw, Through Hole, PCB
Number of Channels	1
Output Current	18mA
Output Voltage	6V
Reach SVHC Compliant	No
Series	70
Termination	PC Pins
Throw Configuration	SPST
Turn-Off Delay Time	0.075ms
Turn-On Delay Time	0.05ms
DC Rated Voltage	32V
Width	1.25inch
