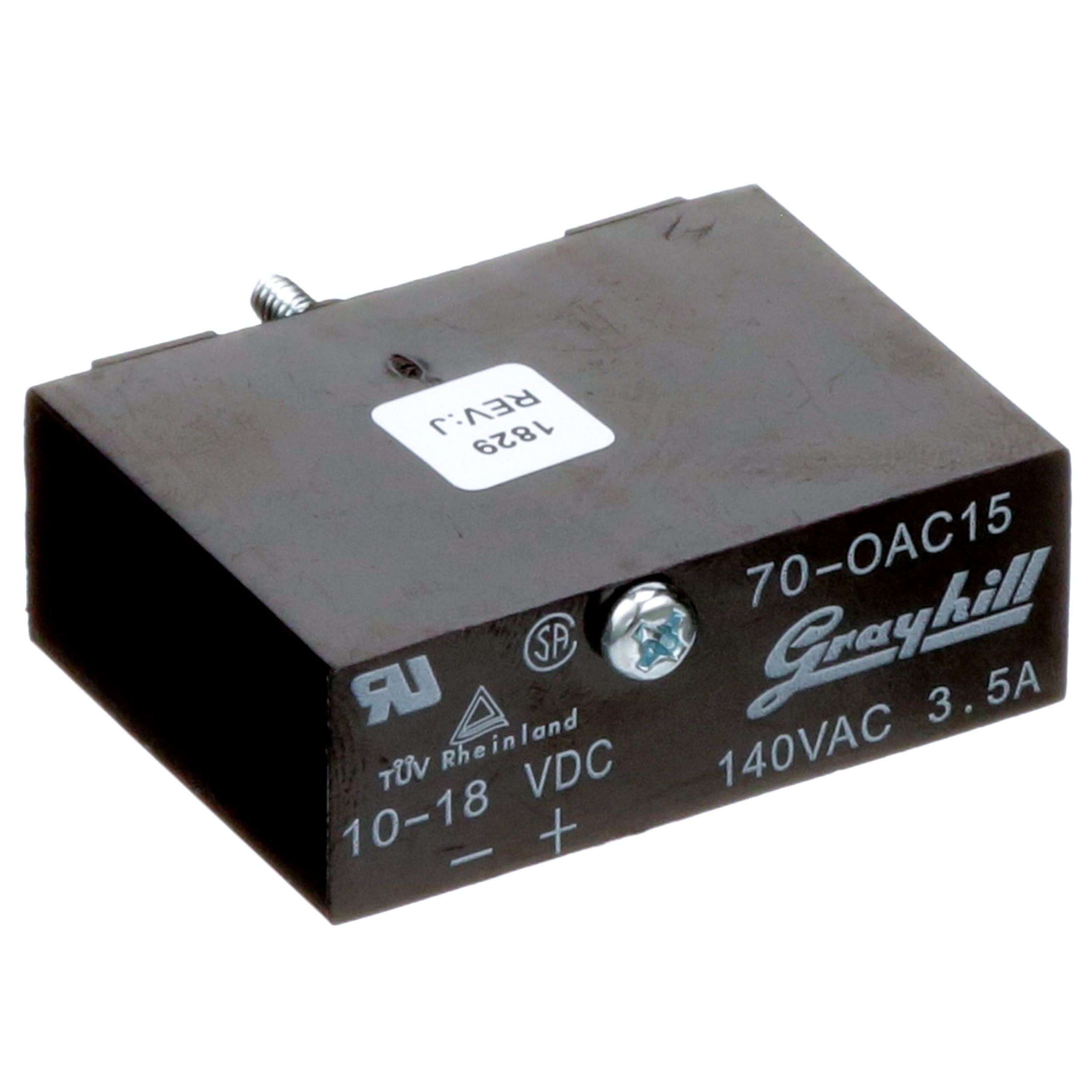

AC/DC output solid state relay featuring a 3.5A load current rating and 10-18V DC input voltage range. This single-pole, single-throw (SPST) module offers 8.33ms turn-on and turn-off delay times. Designed for screw, through-hole, or PCB mounting, it operates across a -40°C to 100°C temperature range and holds UL, CSA, CE, and TUV approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70-OAC15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Black |
| Current Rating | 3.5A |
| Depth | 0.6inch |
| Height | 31.8mm |
| Input Current | 9mA |
| Input Resistance | 1.8kR |
| Lead Free | Exempt |
| Length | 1.7inch |
| Load Current | 3.5A |
| Max Input Voltage | 18V |
| Min Input Voltage | 10V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Screw, Through Hole, PCB |
| Number of Poles | 1 |
| Output Current | 3.5A |
| Output Type | Digital |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PCB |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 8.33ms |
| Turn-On Delay Time | 8.33ms |
| Width | 1.25inch |
| RoHS | Not Compliant |
