PackageModule
MountingScrew, Through Hole
Quick Jump:
Technical Specifications
Grayhill 70-OAC24A technical specifications.
General
Approvals
UL, CSA, CE, TUV
Package/Case
Module
Color
Black
Input Type
AC
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Screw, Through Hole
Nominal Input Voltage (AC)
240V
Output Current
3.5A
Series
70
Termination
PC Pins
Turn-Off Delay Time
8.33ms
Turn-On Delay Time
8.33ms
Compliance
RoHS
Not Compliant
Datasheet
Grayhill 70-OAC24A Datasheet
Download the complete datasheet for Grayhill 70-OAC24A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

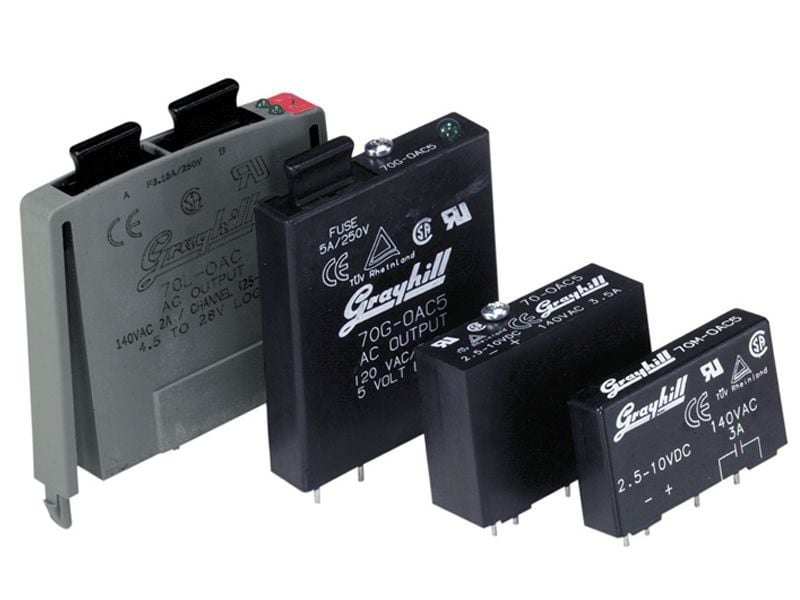

Product Images
