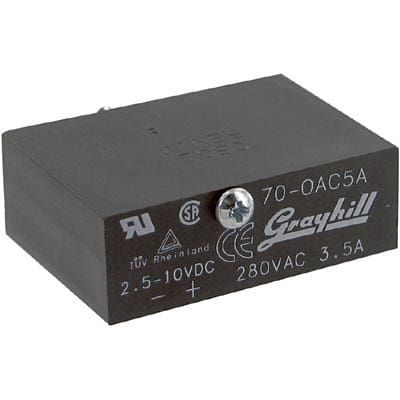

Single-pole, single-throw (SPST) I/O relay module with a 3.5A output current rating and 280V output voltage. Features include 2.5V to 10V input voltage range, 16mA input current, and 240 Ohm input resistance. Operates across a -40°C to 100°C temperature range with 8.33ms turn-on and turn-off delays. Mounting options include screw, through-hole, plug-in, and PCB, with PC pin termination. Approvals include UL, CSA, and CE.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70-OAC5A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70-OAC5A technical specifications.
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Color | Black |
| Contact Plating | Tin |
| Current Rating | 3.5A |
| Depth | 0.6inch |
| Height | 31.8mm |
| Input Current | 16mA |
| Input Resistance | 240R |
| Lead Free | Contains Lead |
| Length | 1.7inch |
| Max Input Current | 3A |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Mount | Screw, Through Hole, Plug-In, PCB |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Output Current | 3.5A |
| Output Voltage | 280V |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 8.33ms |
| Turn-On Delay Time | 8.33ms |
| Width | 1.25inch |
| RoHS | Not Compliant |
