General purpose I/O relay module featuring a single-pole, single-throw (SPST) configuration. This red module offers a 3.5A maximum output current and a 60V DC output voltage. Designed for through-hole mounting with PC pin termination, it operates with a 9mA input current and a 2.7kΩ input resistance. Approvals include UL, CSA, CE, and TUV, with an operating temperature range of -40°C to 100°C.
PackageModule
Current Rating3.5A
MountingScrew, Through Hole, PCB
Power1W
Quick Jump:
Technical Specifications

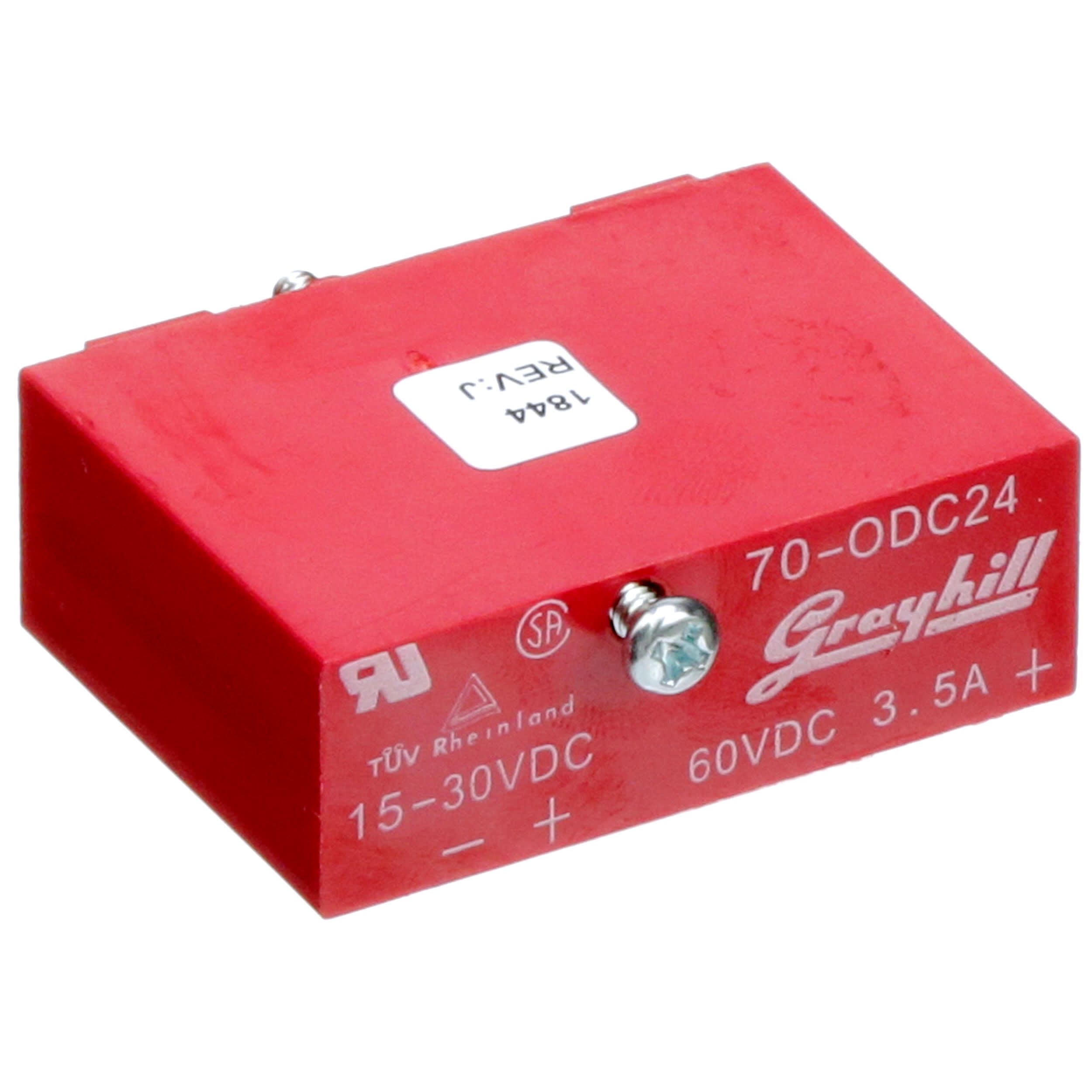

Grayhill 70-ODC24 technical specifications.
General
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Red |
| Current Rating | 3.5A |
| Depth | 0.6inch |
| Height | 31.8mm |
| Input Current | 9mA |
| Input Resistance | 2.7kR |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 1.7inch |
| Max Input Current | 9mA |
| Max Input Voltage (DC) | 60V |
| Max Input Voltage | 30V |
| Min Input Voltage | 15V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Mount | Screw, Through Hole, PCB |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Operating Supply Voltage | 60V |
| Output Current | 3.5A |
| Output Type | Digital |
| Output Voltage | 60V |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.05ms |
| Turn-On Delay Time | 0.02ms |
| Width | 1.25inch |
Compliance
| RoHS | Not Compliant |
