GRAYHILL

70-ODC5

Datasheet

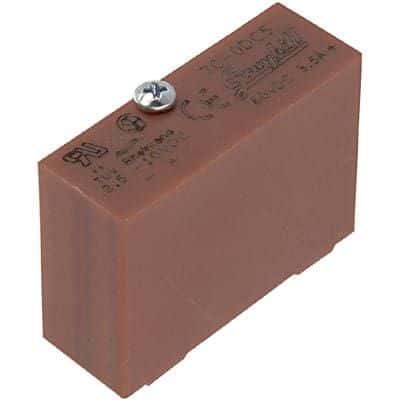

1-Ch DC I/O Relay Module, 3.5A, 60VDC, Thru-Hole

Grayhill

70-ODC5

Name: 70-ODC5 Grayhill
Brand: Grayhill
SKU: 70-ODC5

1-Ch DC I/O Relay Module, 3.5A, 60VDC, Thru-Hole

Single-pole, single-throw (SPST) I/O relay module with a 3.5A load current rating and 4000Vrms isolation. Features DC input with a 14mA input current and 300 Ohm input resistance, operating between 92V and 126.5V. The module offers a 3.5A output current at 60V, with turn-on and turn-off delay times of 0.02ms and 0.05ms respectively. Mountable via screw, through-hole, or PCB termination, this red module operates from -40°C to 100°C and is UL, CSA, CE, and TUV approved.

PackageModule

Current Rating3.5A

MountingScrew, Through Hole, PCB

Power1W

Quick Jump:

Technical Specifications

Grayhill 70-ODC5 technical specifications.

General

Approvals	UL, CSA, CE, TUV
Package/Case	Module
Color	Red
Current Rating	3.5A
Depth	0.6inch
Height	31.8mm
Housing Color	Red
Input Current	14mA
Input Resistance	300R
Input Type	DC
Lead Free	Lead Free
Length	1.7inch
Load Current	3.5A
Max Input Current	14mA
Max Input Voltage (DC)	60V
Max Input Voltage	126.5V
Min Input Voltage	92V
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Output Current	3.5A
Mount	Screw, Through Hole, PCB
Number of Channels	1
Number of Poles	1
Operating Supply Voltage	60V
Output Current	3.5A
Output Type	Digital
Output Voltage	60V
Power Dissipation	1W
Reach SVHC Compliant	No
Series	70
Termination	PC Pins
Throw Configuration	SPST
Turn-Off Delay Time	0.05ms
Turn-On Delay Time	0.02ms
Width	1.25inch
