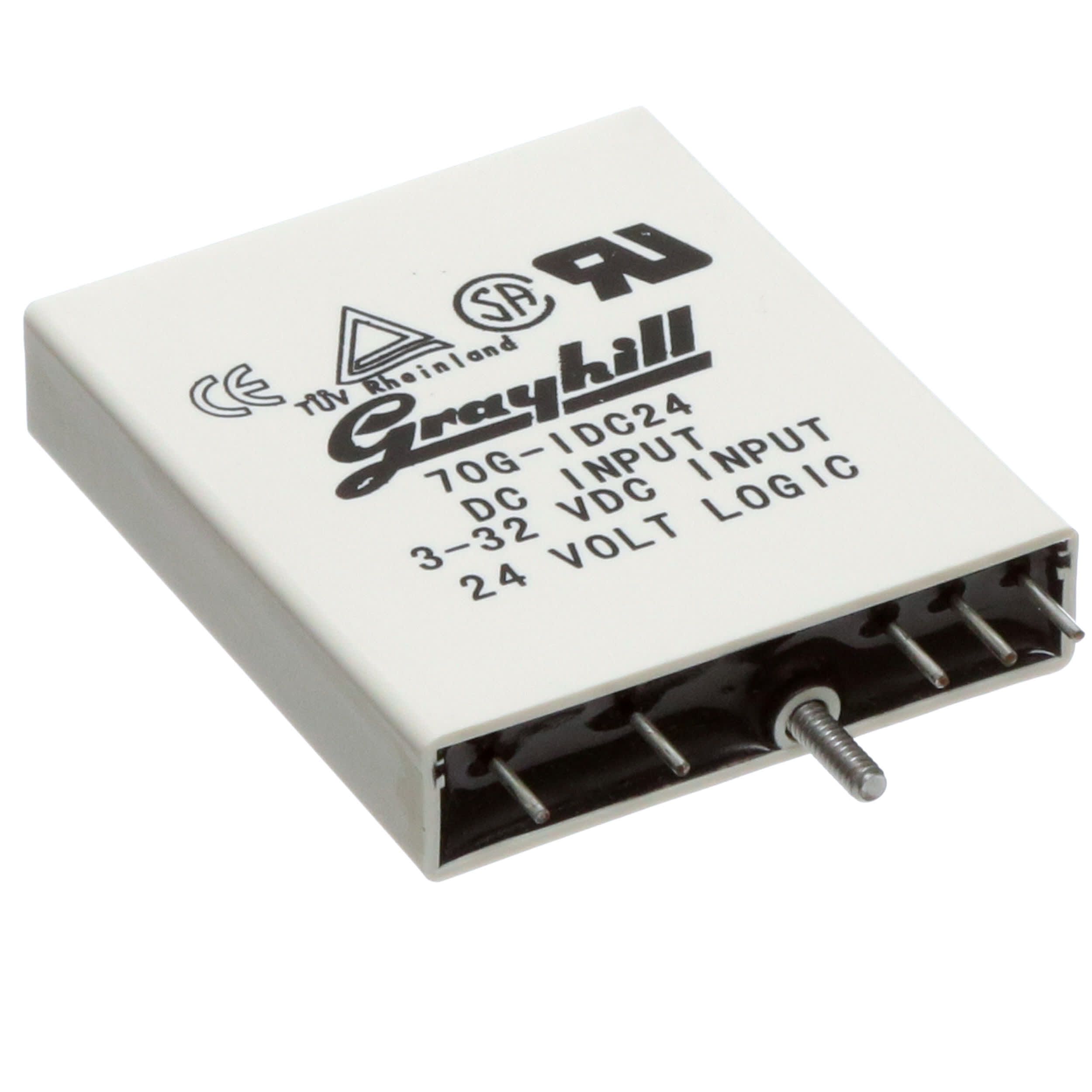

Single-pole, single-throw (SPST) solid-state relay with DC input and AC/DC output. Features a 3V to 32V DC input voltage range and a 50V DC output voltage rating. Handles up to 50mA output current and 18mA input current. Operating temperature range from -40°C to 100°C. UL, CSA, CE, and TUV approved, with PCB or screw mounting options and PC pin termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70G-IDC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70G-IDC24 technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | White |
| Current Rating | 18mA |
| Depth | 0.46inch |
| Height | 55.9mm |
| Input Current | 18mA |
| Input Resistance | 1.8kR |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 1.9inch |
| Max Input Current | 18A |
| Max Input Voltage (DC) | 32V |
| Min Input Voltage (DC) | 3V |
| Max Input Voltage | 32V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Mount | PCB, Screw |
| Number of Channels | 1 |
| Output Current | 10mA |
| Output Voltage | 50V |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.4ms |
| Turn-On Delay Time | 0.2ms |
| Width | 2.2inch |
| RoHS | Not Compliant |
