Single-pole, single-throw (SPST) output relay module with 120VAC nominal input voltage and 3.5A output current at 120V. Features 4000Vrms isolation, 1W power dissipation, and a 100R input resistance. Operates within a -40°C to 100°C temperature range. Mounting options include through-hole, screw, and PCB termination. Approvals include UL, CSA, CE, and TUV.
PackageModule
Voltage Rating140V
Current Rating3.5A
MountingThrough Hole, Screw, PCB
Quick Jump:
Technical Specifications
Grayhill 70G-OAC5 technical specifications.
General
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Black |
| Current Rating | 3.5A |
| Depth | 0.46inch |
| Height | 55.9mm |
| Housing Color | Black |
| Input Current | 20mA |
| Input Resistance | 100R |
| Lead Free | Contains Lead |
| Length | 1.9inch |
| Max Input Current | 20mA |
| Max Input Voltage | 6V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Screw, PCB |
| Nominal Input Voltage (AC) | 120V |
| Number of Analog Inputs | 1 |
| Number of Analog Outputs | 1 |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Poles | 1 |
| Output Current | 3.5A |
| Output Voltage | 120V |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 70 |
| Termination | PCB |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 8.33ms |
| Turn-On Delay Time | 8.33ms |
| Voltage Rating | 140V |
| DC Rated Voltage | 140V |
| Width | 2.2inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Grayhill 70G-OAC5 Datasheet
Download the complete datasheet for Grayhill 70G-OAC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

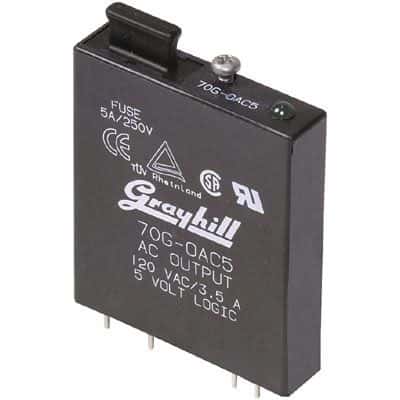

Product Images
