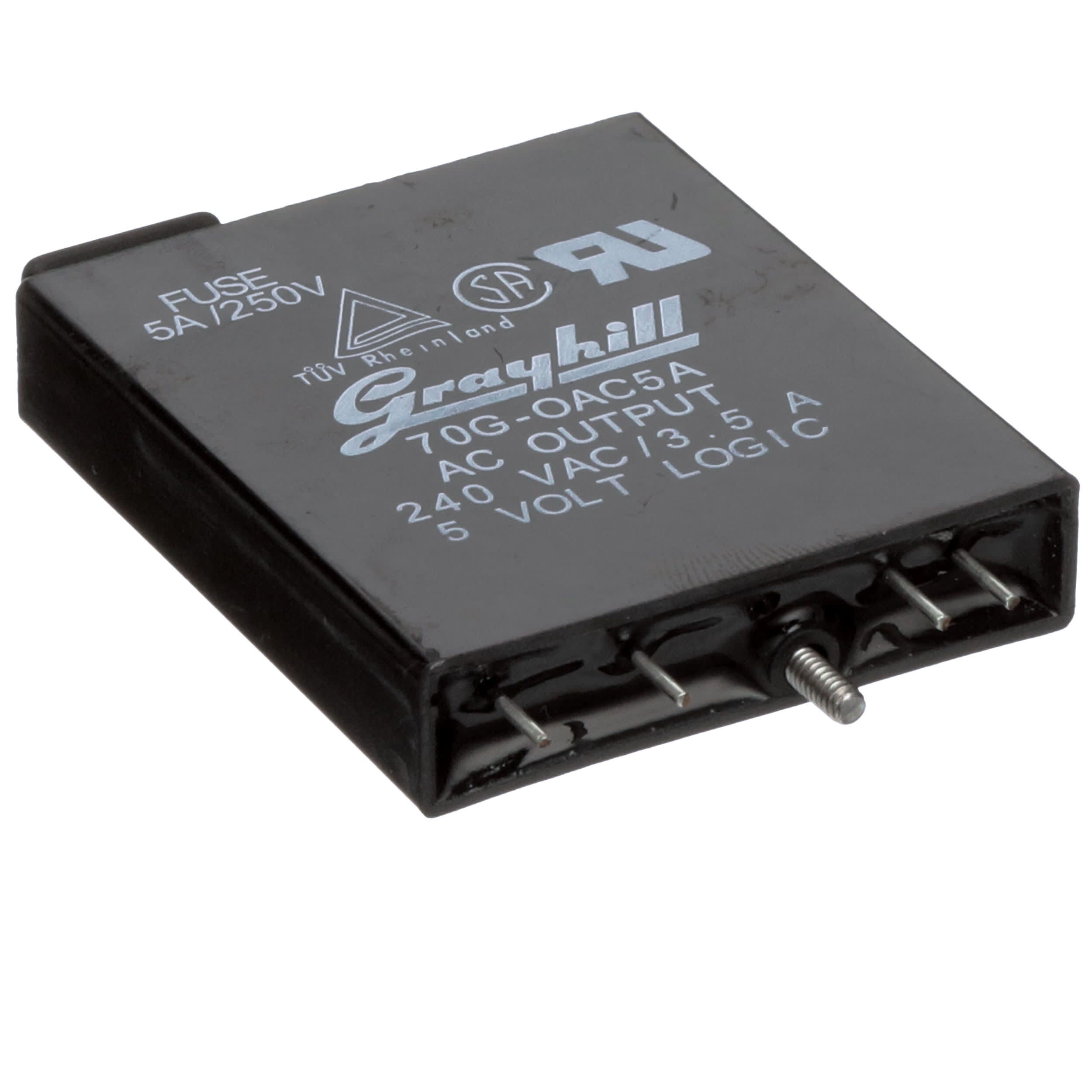

Single pole, single throw (SPST) output relay module featuring a 3.5A current rating and 280V AC output voltage. This module operates with an input voltage range of 4V to 6V DC and a maximum input current of 20mA. Mounting options include through-hole, screw, plug-in, and PCB, with PC pin termination. Operating temperature range is -40°C to 100°C, and it includes UL, CSA, and CE approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70G-OAC5A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70G-OAC5A technical specifications.
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Color | Black |
| Contact Plating | Tin |
| Current Rating | 3.5A |
| Depth | 0.46inch |
| Height | 55.9mm |
| Housing Color | Black |
| Input Current | 20mA |
| Input Resistance | 100R |
| Lead Free | Contains Lead |
| Length | 1.9inch |
| Load Current | 3.5A |
| Max Input Current | 20mA |
| Max Input Voltage | 6V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Mount | Through Hole, Screw, Plug-In, PCB |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Output Current | 3.5A |
| Output Voltage | 280V |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 8.33ms |
| Turn-On Delay Time | 8.33ms |
| DC Rated Voltage | 240V |
| Width | 2.2inch |
| RoHS | Not Compliant |
