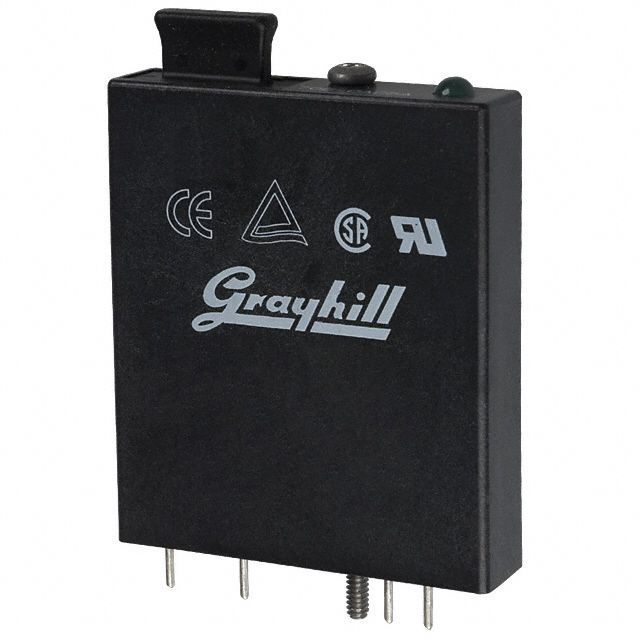

This AC input I/O relay module features a 1-pole, SPST configuration with a 3.5A output current rating and a 280V voltage rating. It operates with a nominal AC input voltage of 240V, requiring 4V to 6V input current and a 20mA input current. The module offers a 4000Vrms isolation voltage and is designed for through-hole, screw, or PCB mounting with PC pin termination. It boasts a wide operating temperature range of -40°C to 100°C and includes UL, CSA, CE, and TUV approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70G-OAC5A-L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70G-OAC5A-L technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Black |
| Current Rating | 3.5A |
| Depth | 0.46inch |
| Height | 55.9mm |
| Input Current | 20mA |
| Input Resistance | 100R |
| Input Type | AC |
| Lead Free | Lead Free |
| Length | 1.9inch |
| Max Input Voltage | 6V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Screw, PCB |
| Nominal Input Voltage (AC) | 240V |
| Number of Poles | 1 |
| Output Current | 3.5A |
| Output Type | Digital |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 8.33ms |
| Turn-On Delay Time | 8.33ms |
| Voltage Rating | 280V |
| DC Rated Voltage | 280V |
| Width | 2.2inch |
| RoHS | Not Compliant |
