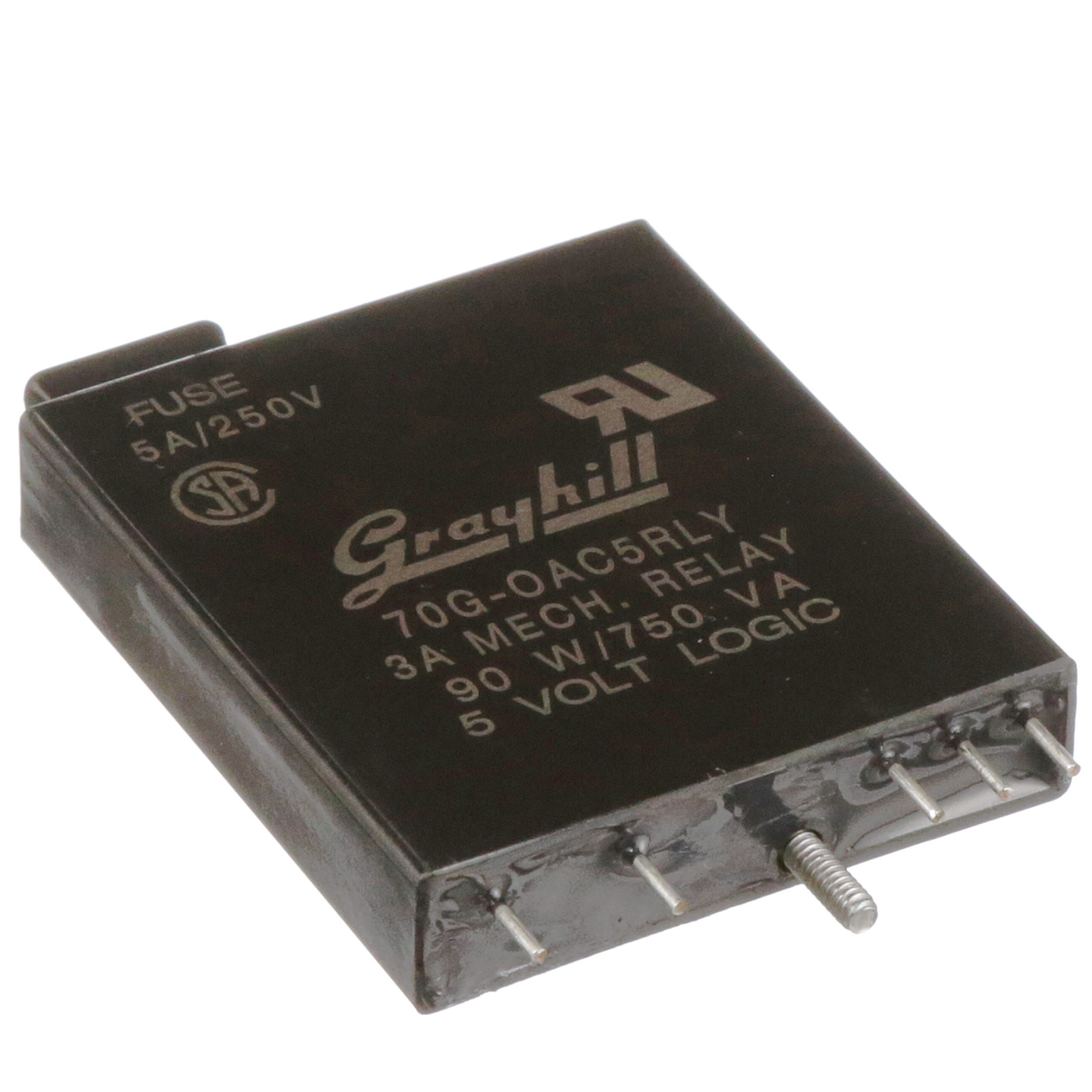

General I/O relay module featuring 1 Form A (SPST) contact configuration. Rated for 3A load current and 3.5A current rating, with a maximum output voltage of 110V. Input specifications include 20mA input current and a 100 Ohm input resistance, operating within a 4V to 6V input voltage range. This module supports through-hole, screw, plug-in, and PCB mounting, with PC pin termination. Approvals include UL, CSA, CE, and TUV, and it operates across a temperature range of -40°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70G-OAC5RLY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70G-OAC5RLY technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Black |
| Current Rating | 3.5A |
| Depth | 0.46inch |
| Height | 55.9mm |
| Input Current | 20mA |
| Input Resistance | 100R |
| Lead Free | Lead Free |
| Length | 1.9inch |
| Load Current | 3A |
| Max Input Current | 26mA |
| Max Input Voltage (AC) | 250V |
| Max Input Voltage (DC) | 110V |
| Max Input Voltage | 6V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Mount | Through Hole, Screw, Plug-In, PCB |
| Number of Poles | 1 |
| Output Current | 3A |
| Output Type | Digital |
| Output Voltage | 110V |
| Package Quantity | 1 |
| Primary Type | MODULE |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 11ms |
| Turn-On Delay Time | 11ms |
| DC Rated Voltage | 280V |
| Width | 2.2inch |
| RoHS | Compliant |
