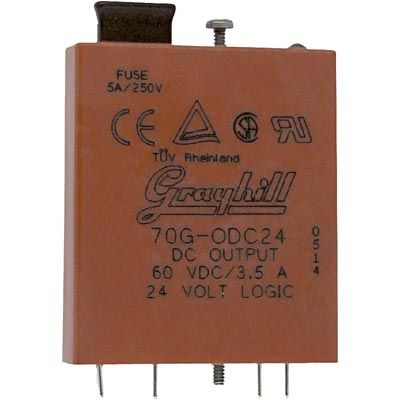

General I/O Relay Module featuring a 3.5A output current rating and 60V DC input type. This module offers 1 channel with SPST throw configuration and a 1W power dissipation. It operates within a -40°C to 100°C temperature range and includes UL, CSA, CE, and TUV approvals. Mounting options include through-hole, screw, and PCB, with PC pin termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70G-ODC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70G-ODC24 technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Red |
| Current Rating | 3.5A |
| Depth | 0.46inch |
| Height | 55.9mm |
| Input Current | 9mA |
| Input Resistance | 2.7kR |
| Input Type | DC |
| Lead Free | Contains Lead |
| Length | 1.9inch |
| Max Input Current | 9mA |
| Max Input Voltage (DC) | 60V |
| Max Input Voltage | 126.5V |
| Min Input Voltage | 92V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Mount | Through Hole, Screw, PCB |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Operating Supply Voltage | 60V |
| Output Current | 3.5A |
| Output Type | Digital |
| Output Voltage | 60V |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.05ms |
| Turn-On Delay Time | 0.02ms |
| Width | 2.2inch |
| RoHS | Not Compliant |
