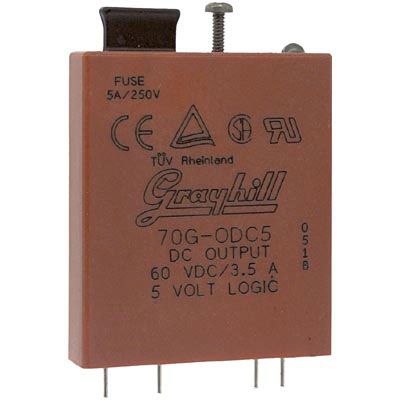

This single-channel, SPST I/O relay module features a 3.5A output current and 60V DC rated voltage. It operates with a DC input type, requiring 13mA input current and 150 Ohms input resistance. The module offers a 4000Vrms isolation voltage and is designed for through-hole mounting. It operates within a temperature range of -40°C to 100°C and includes UL, CSA, CE, and TUV approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70G-ODC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70G-ODC5 technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Red |
| Current Rating | 3.5A |
| Depth | 0.46inch |
| Height | 55.9mm |
| Housing Color | Red |
| Input Current | 13mA |
| Input Resistance | 150R |
| Input Type | DC |
| Lead Free | Contains Lead |
| Length | 1.9inch |
| Max Input Current | 13mA |
| Max Input Voltage (DC) | 60V |
| Max Input Voltage | 126.5V |
| Min Input Voltage | 92V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Mount | Through Hole, Screw, PCB |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Operating Supply Voltage | 60V |
| Output Current | 3.5A |
| Output Type | Digital |
| Output Voltage | 60V |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.05ms |
| Turn-On Delay Time | 0.02ms |
| DC Rated Voltage | 60V |
| Width | 2.2inch |
| RoHS | Not Compliant |
