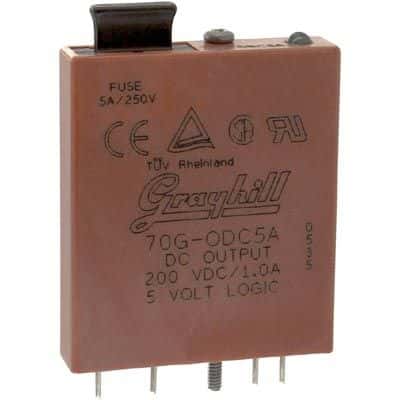

Single-pole, single-throw (SPST) I/O relay module with a 3.5A output current rating and 200V DC rated voltage. Features a 13mA input current and 4V to 6V DC input voltage range. Operates across a -40°C to 100°C temperature range with 0.075ms turn-on and 0.75ms turn-off delay times. Through-hole, screw, and PCB mountable with PC pin termination. Approvals include UL, CSA, CE, and TUV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70G-ODC5A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70G-ODC5A technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Red |
| Current Rating | 3.5A |
| Depth | 0.46inch |
| Height | 55.9mm |
| Input Current | 13mA |
| Input Resistance | 150R |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 1.9inch |
| Max Input Current | 13mA |
| Max Input Voltage (DC) | 200V |
| Max Input Voltage | 6V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5A |
| Mount | Through Hole, Screw, PCB |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Operating Supply Voltage | 200V |
| Output Current | 3.5A |
| Output Type | Digital |
| Output Voltage | 200V |
| Power Dissipation | 1.5W |
| Reach SVHC Compliant | Unknown |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.75ms |
| Turn-On Delay Time | 0.075ms |
| DC Rated Voltage | 200V |
| Width | 2.2inch |
| RoHS | Not Compliant |
