Single pole, single throw (SPST) output module with one digital output channel. Features a 500mA output current rating and a 200V voltage rating, with a 3.5A current rating. Operates with a 60V supply voltage and accepts input voltages from 4.8V to 110V. Mounting options include through-hole, screw, plug-in, and PCB termination. Approvals include UL, CSA, CE, and TUV, with a lead-free construction.
PackageModule
Voltage Rating200V
Current Rating3.5A
MountingThrough Hole, Screw, Plug-In, PCB
Quick Jump:
Technical Specifications
Grayhill 70G-ODC5R technical specifications.
General
Approvals
UL, CSA, CE, TUV
Package/Case
Module
Color
Red
Current Rating
3.5A
Depth
0.46inch
Height
55.9mm
Input Current
10mA
Input Resistance
500R
Lead Free
Lead Free
Length
1.9inch
Max Input Voltage
110V
Min Input Voltage
4.8V
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole, Screw, Plug-In, PCB
Number of Analog Outputs
1
Number of Channels
1
Number of Poles
1
Operating Supply Voltage
60V
Output Current
500mA
Output Type
Digital
Power Dissipation
1W
Reach SVHC Compliant
No
Series
70
Termination
PC Pins
Throw Configuration
SPST
Turn-Off Delay Time
1ms
Turn-On Delay Time
1ms
Voltage Rating
200V
DC Rated Voltage
200V
Width
2.2inch
Compliance
RoHS
Compliant
Datasheet
Grayhill 70G-ODC5R Datasheet
Download the complete datasheet for Grayhill 70G-ODC5R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

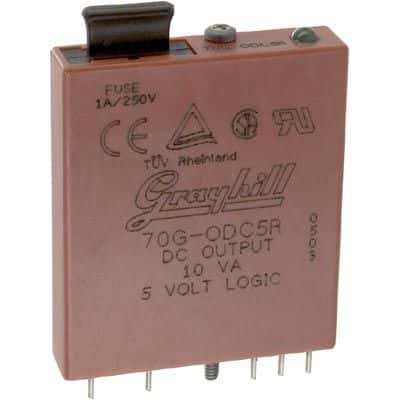

Product Images
