2-channel AC input relay module with SPST output. Features 120VAC nominal input, 6mA input current, and 22kR input resistance. Operates with 4.5V to 28V supply voltage and provides 5V output at 6mA. Rated for 2500Vrms isolation, with operating temperatures from -40°C to 85°C. Mounts via PCB, snap-in, or DIN rail. Approvals include UL, CSA, CE, and TUV.
PackageModule
Current Rating8mA
MountingPCB, Snap in, DIN Rail
Quick Jump:
Technical Specifications
Grayhill 70L-IAC technical specifications.
General
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Grey |
| Current Rating | 8mA |
| Height | 56.6mm |
| Input Current | 6mA |
| Input Resistance | 22kR |
| Input Type | AC |
| Lead Free | Exempt |
| Length | 53.1mm |
| Max Input Current | 8mA |
| Max Input Voltage (AC) | 140V |
| Min Input Voltage (AC) | 0V |
| Max Input Voltage | 140V |
| Min Input Voltage | 0V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 4.5V |
| Mount | PCB, Snap in, DIN Rail |
| Nominal Input Voltage (AC) | 120V |
| Number of Channels | 2 |
| Number of Outputs | 1 |
| Output Current | 6mA |
| Output Voltage | 5V |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PCB |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 20ms |
| Turn-On Delay Time | 20ms |
| Width | 9.65mm |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 70L-IAC Datasheet
Download the complete datasheet for Grayhill 70L-IAC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

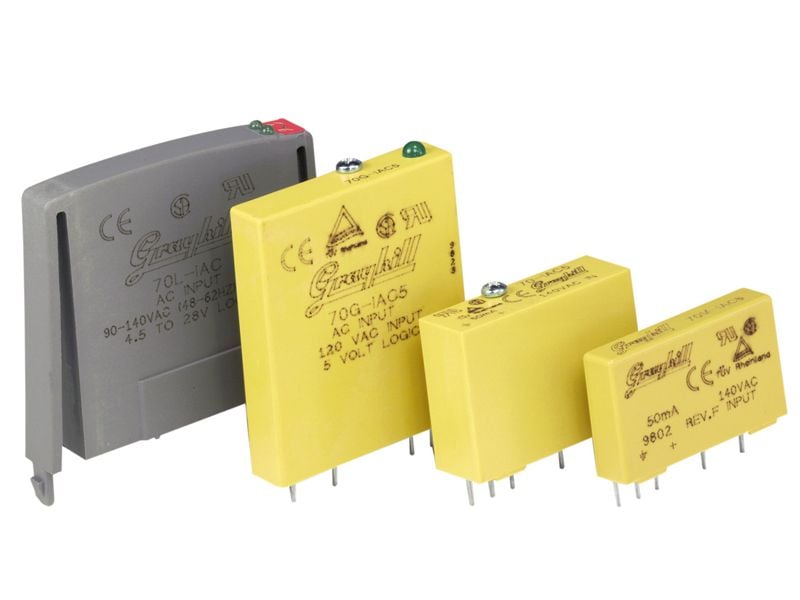

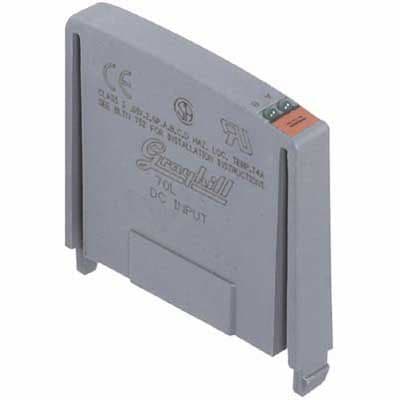

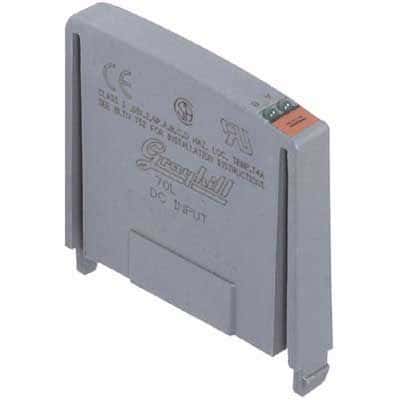

Product Images
