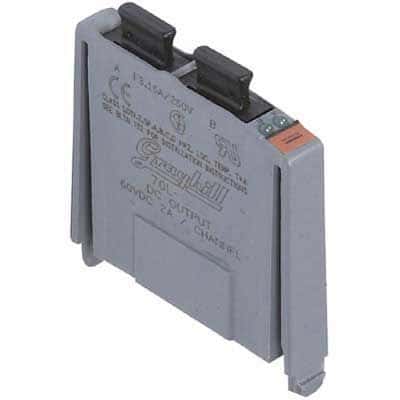

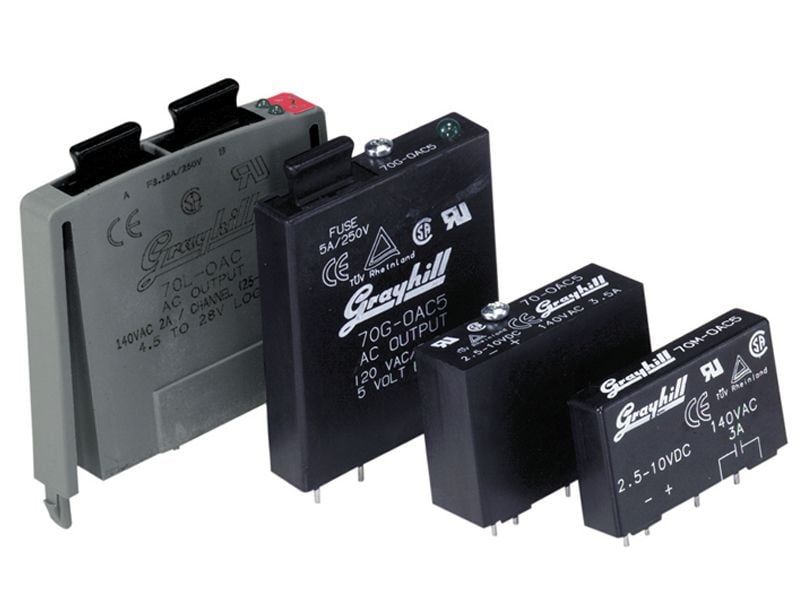

2-channel, 1-pole SPST I/O relay module with 120VAC nominal input and 2A output current. Features 2500Vrms isolation, 4.5V to 28V input/supply voltage range, and 7mA input current with 2.15kR input resistance. Operates from -40°C to 85°C, with 8.33ms turn-on and turn-off delay times. Mountable via through-hole, snap-in, DIN rail, or PCB termination. Approvals include UL, CSA, CE, and TUV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70L-OAC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Grey |
| Current Rating | 2A |
| Height | 56.6mm |
| Input Current | 7mA |
| Input Resistance | 2.15kR |
| Input Type | AC |
| Lead Free | Exempt |
| Length | 53.1mm |
| Max Input Voltage | 28V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole, Snap in, DIN Rail, PCB |
| Nominal Input Voltage (AC) | 120V |
| Number of Channels | 2 |
| Number of Poles | 1 |
| Output Current | 2A |
| Power Dissipation | 1W |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PCB |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 8.33ms |
| Turn-On Delay Time | 8.33ms |
| Width | 9.65mm |
| RoHS | Compliant |
