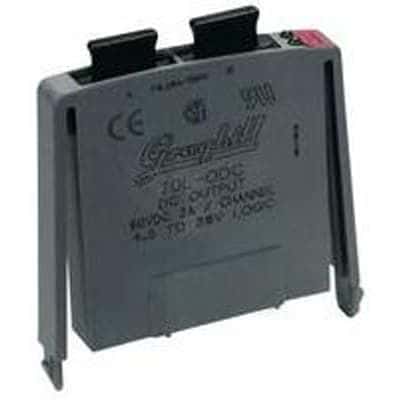

General purpose I/O relay module featuring a 1 Form A (SPST) configuration. This output module supports a 2A current rating and 500mA load current. Input specifications include a 30mA input current and 164 Ohm input resistance, with a minimum input voltage of 4.5V and a maximum input voltage of 6V. Operating temperature range is -40°C to 70°C. Mounting options include snap-in, DIN rail, and PCB termination. Approvals include UL and CSA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70L-ODC5R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Package/Case | Module |
| Color | Grey |
| Current Rating | 2A |
| Input Current | 30mA |
| Input Resistance | 164R |
| Lead Free | Contains Lead |
| Load Current | 500mA |
| Max Input Voltage (DC) | 200.2kV |
| Max Input Voltage | 6V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Snap in, DIN Rail, PCB |
| Number of Poles | 1 |
| Output Current | 500mA |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PCB |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 1ms |
| Turn-On Delay Time | 1ms |
| DC Rated Voltage | 60V |
| RoHS | Compliant |
