Technical Specifications
Grayhill 70L-ODCA technical specifications.
General
Approvals
UL, CSA, CE, TUV
Package/Case
Module
Color
Grey
Height
56.6mm
Input Current
7mA
Input Type
DC
Lead Free
Exempt
Length
53.1mm
Max Input Voltage (DC)
200V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Snap in, DIN Rail
Output Current
2A
Output Voltage
200V
Series
70
Throw Configuration
SPST
Turn-Off Delay Time
0.75ms
Turn-On Delay Time
0.075ms
Width
9.65mm
Compliance
RoHS
Compliant
Datasheet
Grayhill 70L-ODCA Datasheet
Download the complete datasheet for Grayhill 70L-ODCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

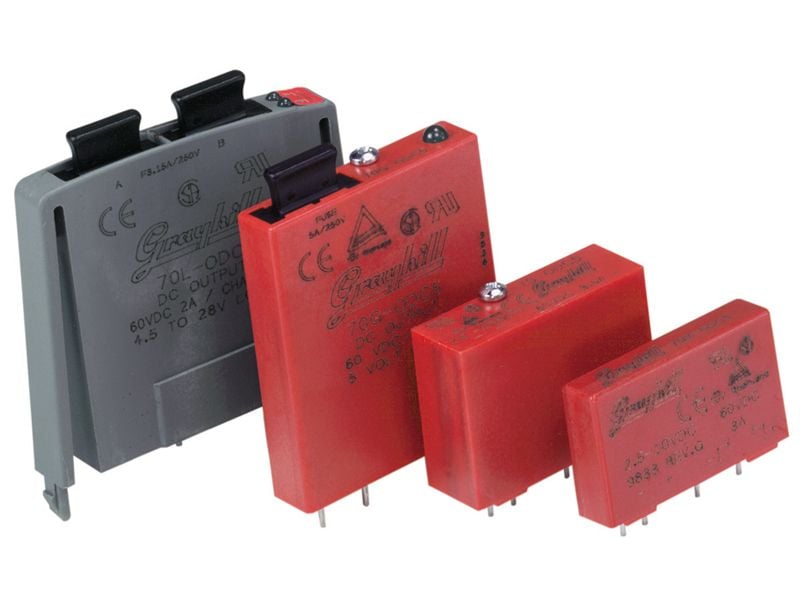

Product Images
