Technical Specifications
Grayhill 70M-IAC15 technical specifications.
General
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Yellow |
| Current Rating | 8mA |
| Lead Free | Contains Lead |
| Max Input Current | 10mA |
| Max Input Voltage (AC) | 140V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Mount | Screw, Through Hole |
| Nominal Input Voltage (AC) | 120V |
| Output Current | 10mA |
| Series | 70 |
| Turn-Off Delay Time | 20ms |
| Turn-On Delay Time | 20ms |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 70M-IAC15 Datasheet
Download the complete datasheet for Grayhill 70M-IAC15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

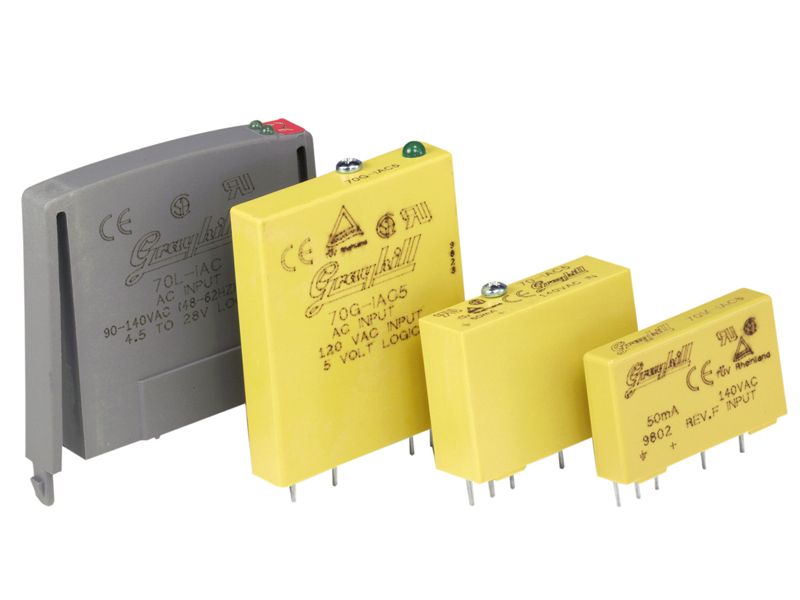

Product Images
