General I/O Relay Module, featuring a single-channel SPST configuration. Input specifications include 220VAC nominal input voltage, 180V minimum, and 280V maximum input voltage, with a 60kR input resistance and 10mA input current. The module offers a 6mA current rating and 10mA output current. Mounting options include through-hole, screw, plug-in, and PCB, with PC pin termination. Operating temperature range is -40°C to 100°C, with turn-on and turn-off delay times of 20ms. Approvals include UL, CSA, CE, and TUV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70M-IAC5A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

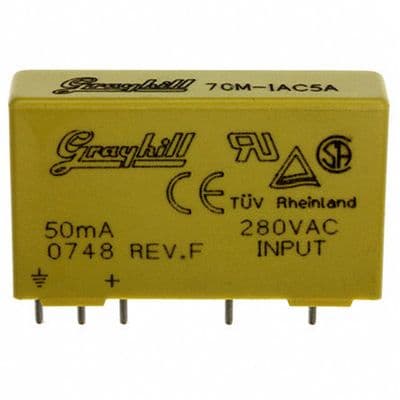

Grayhill 70M-IAC5A technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Yellow |
| Contact Plating | Tin |
| Current Rating | 6mA |
| Depth | 0.4inch |
| Height | 25.4mm |
| Input Current | 10mA |
| Input Resistance | 60kR |
| Input Type | AC |
| Lead Free | Contains Lead |
| Length | 1.7inch |
| Max Input Voltage | 280V |
| Min Input Voltage | 180V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Screw, Plug-In, PCB |
| Nominal Input Voltage (AC) | 220V |
| Number of Channels | 1 |
| Output Current | 10mA |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 20ms |
| Turn-On Delay Time | 20ms |
| Width | 1inch |
| RoHS | Compliant |
