General purpose I/O relay module featuring a single-channel, SPST configuration. This output module accepts 120VAC nominal input voltage with 16mA input current and 240 Ohms input resistance. It offers a 3A output current rating with a 10V output voltage and a 3.5A maximum output current. The module supports through-hole, screw, and PCB mounting with PC pin termination. Operating temperature range is -40°C to 100°C, with 8.33ms turn-on and turn-off delay times. Approvals include UL, CSA, CE, and TUV.
PackageModule
Current Rating3A
MountingThrough Hole, Screw, PCB
Power1W
Quick Jump:
Technical Specifications
Grayhill 70M-OAC5 technical specifications.
General
Approvals
UL, CSA, CE, TUV
Package/Case
Module
Color
Black
Current Rating
3A
Depth
0.4inch
Height
25.4mm
Housing Color
Black
Input Current
16mA
Input Resistance
240R
Input Type
AC
Lead Free
Contains Lead
Length
1.7inch
Max Input Current
3A
Max Input Voltage
10V
Min Input Voltage
2.5V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Mount
Through Hole, Screw, PCB
Nominal Input Voltage (AC)
120V
Number of Channels
1
Number of Poles
1
Output Current
3A
Output Voltage
10V
Power Dissipation
1W
Reach SVHC Compliant
No
Series
70
Termination
PC Pins
Throw Configuration
SPST
Turn-Off Delay Time
8.33ms
Turn-On Delay Time
8.33ms
Width
1inch
Compliance
RoHS
Compliant
Datasheet
Grayhill 70M-OAC5 Datasheet
Download the complete datasheet for Grayhill 70M-OAC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

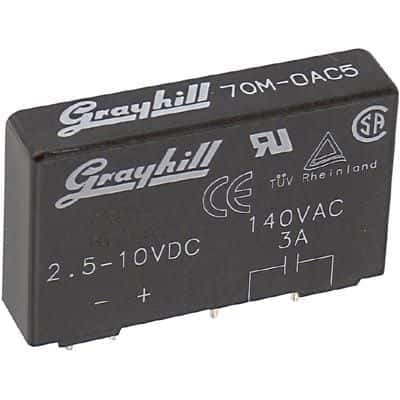

Product Images
