Single-pole, single-throw (SPST) output relay module featuring a 3A current rating and 4000Vrms isolation. This through-hole mounted module operates with DC input voltage between 15V and 60V, requiring 9mA input current at 2.7kΩ resistance. It offers a 3A output current and digital output type, with turn-on and turn-off delay times of 0.02ms and 0.05ms respectively. The module operates within a temperature range of -40°C to 100°C and is UL, CSA, CE, and TUV approved.
PackageModule
Current Rating3A
MountingThrough Hole, Screw, PCB
Power1W
Quick Jump:
Technical Specifications
Grayhill 70M-ODC24 technical specifications.
General
Approvals
UL, CSA, CE, TUV
Package/Case
Module
Color
Red
Current Rating
3A
Depth
0.4inch
Height
25.4mm
Input Current
9mA
Input Resistance
2.7kR
Input Type
DC
Lead Free
Exempt
Length
1.7inch
Max Input Voltage (DC)
60V
Max Input Voltage
30V
Min Input Voltage
15V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Through Hole, Screw, PCB
Number of Channels
1
Number of Poles
1
Operating Supply Voltage
60V
Output Current
3A
Output Type
Digital
Power Dissipation
1W
Reach SVHC Compliant
No
Series
70
Termination
PC Pins
Throw Configuration
SPST
Turn-Off Delay Time
0.05ms
Turn-On Delay Time
0.02ms
Width
1inch
Compliance
RoHS
Not Compliant
Datasheet
Grayhill 70M-ODC24 Datasheet
Download the complete datasheet for Grayhill 70M-ODC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

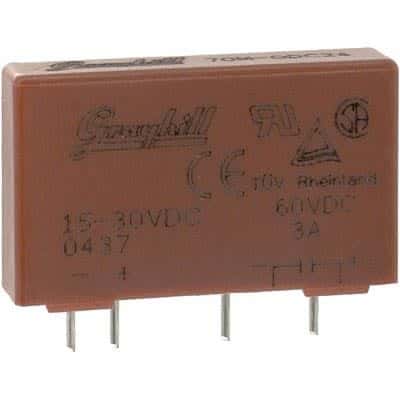

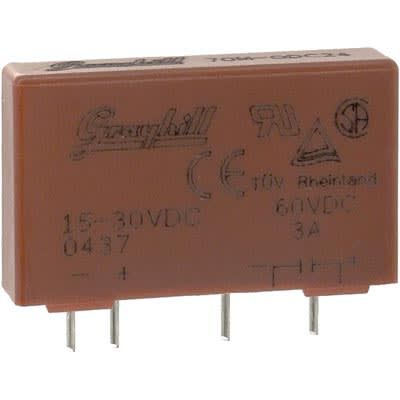

Product Images
