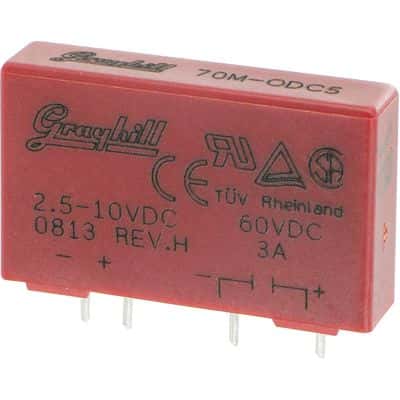

General purpose I/O relay module featuring a 1-pole, SPST configuration. This output module offers a 3A current rating and 60V output voltage. Designed for through-hole mounting, it operates with DC input voltage between 2.5V and 10V, and has an input current of 14mA with 300 Ohms input resistance. The module boasts a 4000Vrms isolation rating and operates across a temperature range of -40°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 70M-ODC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 70M-ODC5 technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Package/Case | Module |
| Color | Red |
| Current Rating | 3A |
| Depth | 0.4inch |
| Height | 25.4mm |
| Housing Color | Red |
| Input Current | 14mA |
| Input Resistance | 300R |
| Input Type | DC |
| Lead Free | Contains Lead |
| Length | 1.7inch |
| Max Input Voltage (DC) | 60V |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Mount | Through Hole, Screw, PCB |
| Number of Poles | 1 |
| Output Current | 3A |
| Output Type | Digital |
| Output Voltage | 60V |
| Reach SVHC Compliant | No |
| Series | 70 |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.05ms |
| Turn-On Delay Time | 0.02ms |
| Width | 1inch |
| RoHS | Not Compliant |
