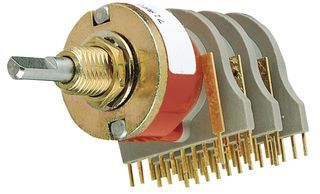

DP6T rotary switch, featuring 6 positions and a 30° index angle for precise control. This single-deck, double-pole switch offers non-shorting silver contacts with gold plating for reliable performance. Rated for 0.25A at 28VDC, with maximum voltage ratings of 115VAC and 30VDC. The through-hole, right-angle mounting design includes an adjustable stop type actuator with a stainless steel shaft.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 71ADF30-01-2-AJN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 9.53mm |
| Actuator Material | Stainless Steel |
| Actuator Type | Shaft |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Style | Non-Shorting |
| Diameter | 17.5mm |
| Illumination Type | Illuminated |
| Index Angle | 30° |
| Index Stops | Adjustable |
| Length | 36.78mm |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, Panel |
| Number of Decks | 1 |
| Number of Poles | 2 |
| Number of Poles per Deck | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 71 |
| Termination | PC Pin |
| Throw Configuration | DP6T, DP |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 30V |
| Weight | 14g |
| Width | 17.45mm |
| RoHS | Compliant |
