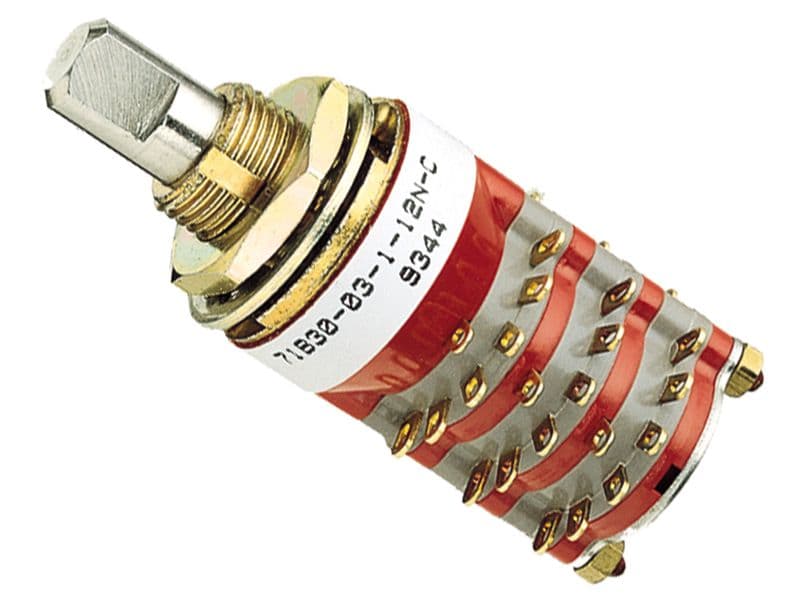

This 12-position SPST rotary switch has a silver contact material and a maximum voltage rating of 30V DC. It is designed for panel mount and has a current rating of 250mA. The switch has two decks with one pole per deck and is rated for continuous index stops. It is available in a single package quantity and has a termination of solder. The switch operates within a standard temperature range and meets no specific compliance standards mentioned in the data.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 71B30-02A12S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 9.53mm |
| Contact Material | Silver |
| Current Rating | 250mA |
| Index Angle | 30° |
| Index Stops | Continuous |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Number of Decks | 2 |
| Number of Poles per Deck | 1 |
| Number of Positions | 12 |
| Package Quantity | 1 |
| Series | 71 |
| Termination | Solder |
| Throw Configuration | SP12T |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 30V |
| RoHS | Not Compliant |
