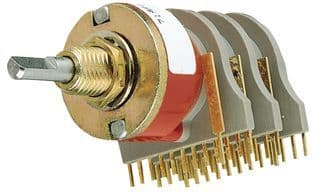

The 71BDF36-02-2-AJN is a 2-deck 2-pole DP5T rotary switch with a contact material of silver and a non-shorting contact type. It has a current rating of 250mA and is rated for 115V AC and 30V DC. The switch is designed for through hole panel mount and has a depth of 0.979inch and a width of 22.23mm. It is also RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 71BDF36-02-2-AJN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 9.53mm |
| Contact Material | Silver |
| Contact Type | Non-Shorting |
| Current Rating | 250mA |
| Depth | 0.979inch |
| Index Angle | 36° |
| Index Stops | Adjustable |
| Mount | Through Hole, Panel |
| Number of Decks | 2 |
| Number of Poles | 2 |
| Number of Poles per Deck | 2 |
| RoHS Compliant | Yes |
| Series | 71 |
| Termination | PC Pin |
| Throw Configuration | DP5T |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 30V |
| Width | 22.23mm |
| RoHS | Compliant |
