Grayhill
71LL36-01-1-04N

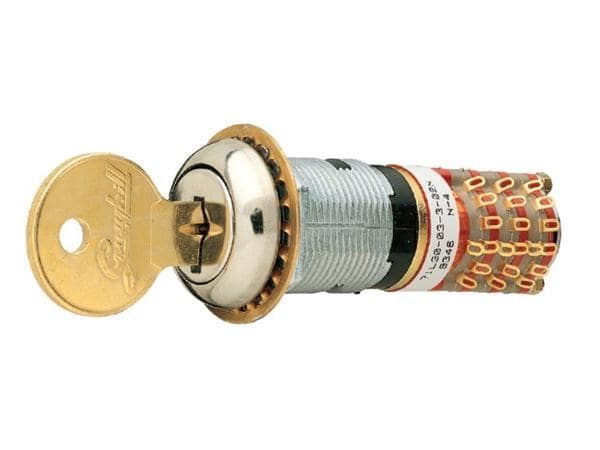

Keylock Switches 71LL36-01-1-04N,KEY 71LL36-01-1-04N,KEY lder lug, 36°, 8 deck, 2 pole/deck, 3 position/pole, non-shorting
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 71LL36-01-1-04N technical specifications.
General
Contact Material
Silver
Electrical Life
15000Cycles
Index Angle
36°
Mechanical Life
15000Cycles
Mount
Panel
Number of Positions
4
Series
71LL
Switch Function
ON-ON-ON-ON
Termination
Solder
Throw Configuration
SP4T
Voltage Rating (AC)
115V
DC Rated Voltage
30V
Compliance
RoHS
Not Compliant
Datasheet
Grayhill 71LL36-01-1-04N Datasheet
Download the complete datasheet for Grayhill 71LL36-01-1-04N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
