The 76HPSB08T is an 8-position SPST DIP switch from Grayhill with a maximum current rating of 150mA and a maximum voltage rating of 30V DC. It has a mechanical life of 2000 cycles and an electrical life of 2000 cycles. The switch is designed for through-hole mounting and has a packaging style of rail/tube. The operating temperature range is from -40°C to 85°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 76HPSB08T technical specifications.
General
| Actuator Type | PIANO |
| Body Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Electrical Life | 2000Cycles |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Number of Positions | 8 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Series | 76HP |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
| Washable | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Grayhill 76HPSB08T Datasheet
Download the complete datasheet for Grayhill 76HPSB08T to view detailed technical specifications.
No datasheet is available for this part.

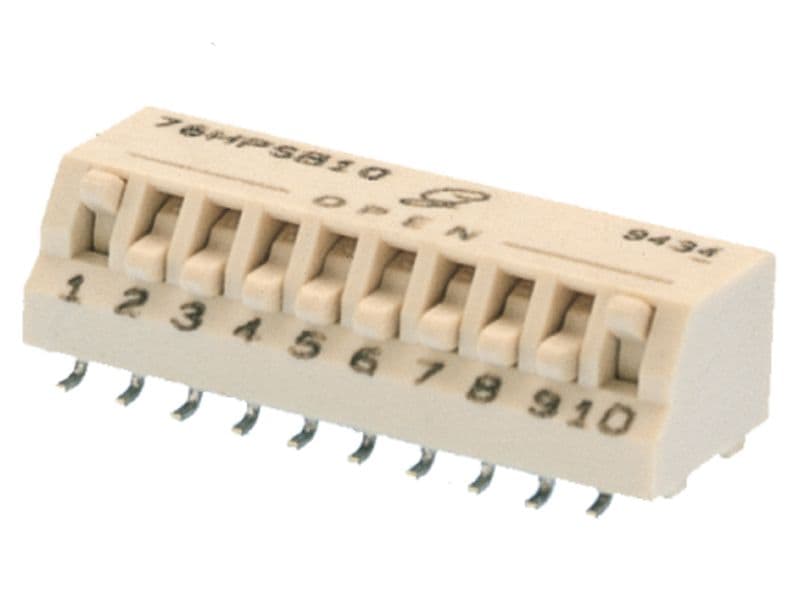

Product Images
