MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 76PRB07T technical specifications.
General
Actuator Type
PIANO
Body Material
Thermoplastic
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Electrical Life
2000Cycles
Max Current Rating
150mA
Max Operating Temperature
85°C
Mechanical Life
2000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
30V
Mount
Through Hole
Number of Positions
7
Orientation
Straight
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
76
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Grayhill 76PRB07T Datasheet
Download the complete datasheet for Grayhill 76PRB07T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

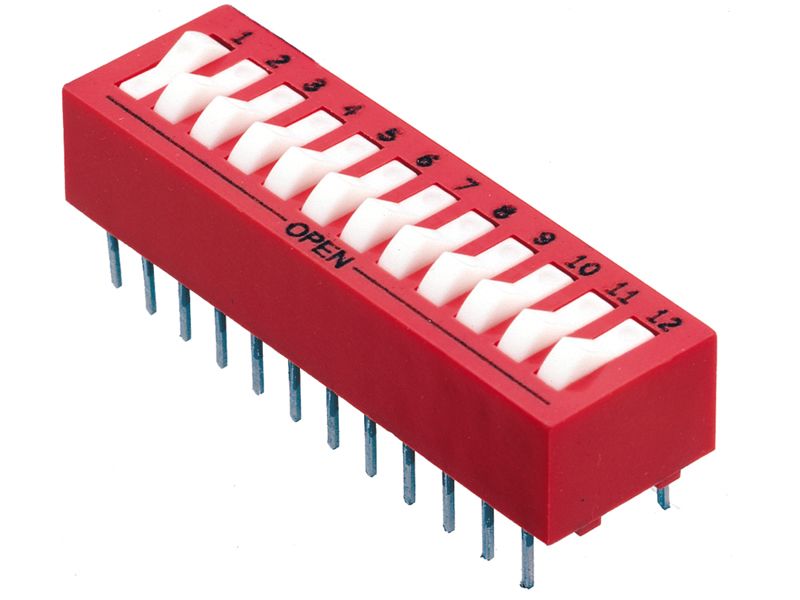

Product Images
