2-position, SPST slide DIP switch featuring a latched actuator and through-hole mounting. This component offers a 0.15A contact current rating at 30VDC, with gold/nickel plated copper alloy contacts. Designed for PCB applications, it boasts a mechanical and electrical life of 2000 cycles and operates within a -40°C to 85°C temperature range. The thermoplastic body and straight PC pin termination ensure reliable performance.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 78B02T technical specifications.
General
Actuator Length
1.27mm
Actuator Type
Slide (Standard)
Body Material
Thermoplastic
Contact Current Rating
4A
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Depth
9.65mm
Electrical Life
2000Cycles
Lead Free
Lead Free
Lead Length
2.54mm
Length
7.1mm
Max Current Rating
150mA
Max Operating Temperature
85°C
Mechanical Life
2000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
30V
Mount
Through Hole, PCB
Number of Circuits
2
Number of Poles
1
Number of Positions
2
Number of Switches
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
78
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Grayhill 78B02T Datasheet
Download the complete datasheet for Grayhill 78B02T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

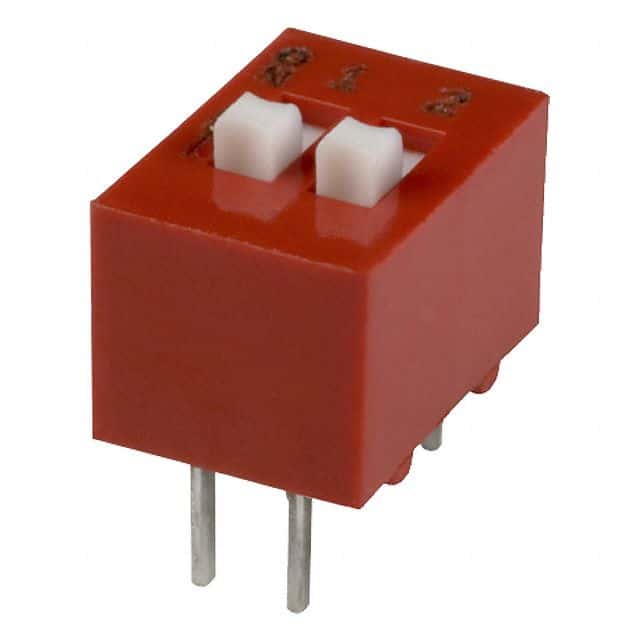

Product Images
