MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 78B05RAT technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Plastic
Contact Material
Copper Alloy, Brass
Contact Plating
Gold, Nickel
Electrical Life
10000Cycles
Max Current Rating
150mA
Max Operating Temperature
85°C
Max Voltage Rating (DC)
30V
Mechanical Life
2000Cycles
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Positions
5
Orientation
Right Angle
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
78
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Grayhill 78B05RAT Datasheet
Download the complete datasheet for Grayhill 78B05RAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

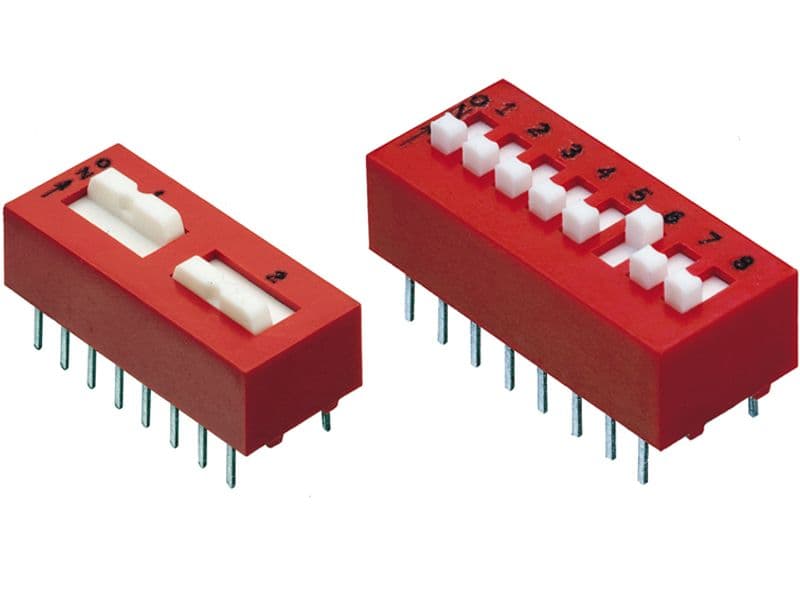

Product Images
