Five-position, SPST slide DIP switch featuring through-hole mounting with straight PC pins. Offers a 0.1-inch pitch and 2.54mm terminal pitch, with a contact current rating of 4A and a maximum DC voltage rating of 30V. Designed for 2000 electrical and mechanical cycles, with gold and nickel plated copper alloy contacts. Thermoplastic body construction, operating temperature range of -40°C to 85°C, and RoHS compliant.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 78B05T technical specifications.
General
Actuator Length
1.27mm
Actuator Type
Slide (Standard)
Body Material
Thermoplastic
Contact Current Rating
4A
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Electrical Life
2000Cycles
Lead Free
Lead Free
Max Current Rating
150mA
Max Operating Temperature
85°C
Max Voltage Rating (DC)
30V
Mechanical Life
2000Cycles
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Number of Poles
1
Number of Positions
5
Number of Switches
5
Orientation
Straight
Packaging
Rail/Tube
Pitch
0.1inch
Radiation Hardening
No
RoHS Compliant
Yes
Series
78
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Grayhill 78B05T Datasheet
Download the complete datasheet for Grayhill 78B05T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

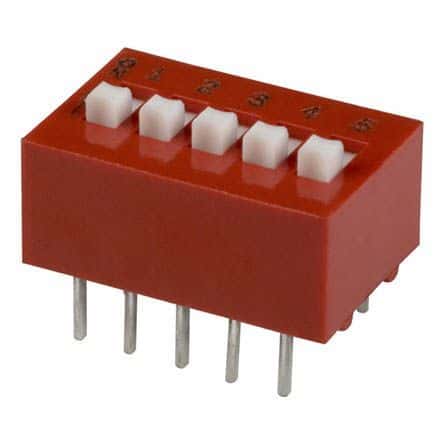

Product Images
