Seven-position SPST slide DIP switch featuring off-on, latched functionality. Rated for 0.15A and 30VDC, with a terminal pitch of 2.54mm and gold/nickel plated copper alloy contacts. Through-hole mounting with straight PC pins, this thermoplastic body switch offers a mechanical and electrical life of 2000 cycles. Operates within a temperature range of -40°C to 85°C and is RoHS compliant and washable.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 78B07ST technical specifications.
General
Actuator Length
1.27mm
Actuator Type
Slide (Standard)
Body Material
Thermoplastic
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Depth
9.65mm
Electrical Life
2000Cycles
Height
8mm
Lead Free
Lead Free
Length
19.8mm
Max Current Rating
150mA
Max Operating Temperature
85°C
Mechanical Life
2000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
30V
Mount
Through Hole
Number of Positions
7
Orientation
Straight
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
78
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
Grayhill 78B07ST Datasheet
Download the complete datasheet for Grayhill 78B07ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

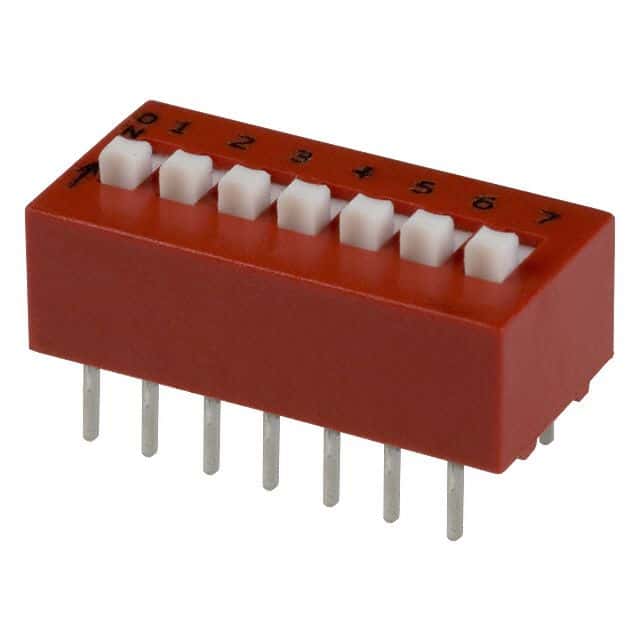

Product Images
