10-position SPST slide DIP switch with a latched actuator. Features a 0.15A contact current rating and 30VDC maximum voltage rating. Thermoplastic body with gold-plated copper alloy contacts and PC pin termination for through-hole PCB mounting. Offers a 2.54mm terminal pitch and a mechanical/electrical life of 2000 cycles. Operates within a temperature range of -40°C to 85°C and is RoHS compliant and washable.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 78B10ST technical specifications.
General
| Actuator Length | 1.27mm |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Contact Current Rating | 150mA |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold, Nickel |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Positions | 10 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 78 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 78B10ST Datasheet
Download the complete datasheet for Grayhill 78B10ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

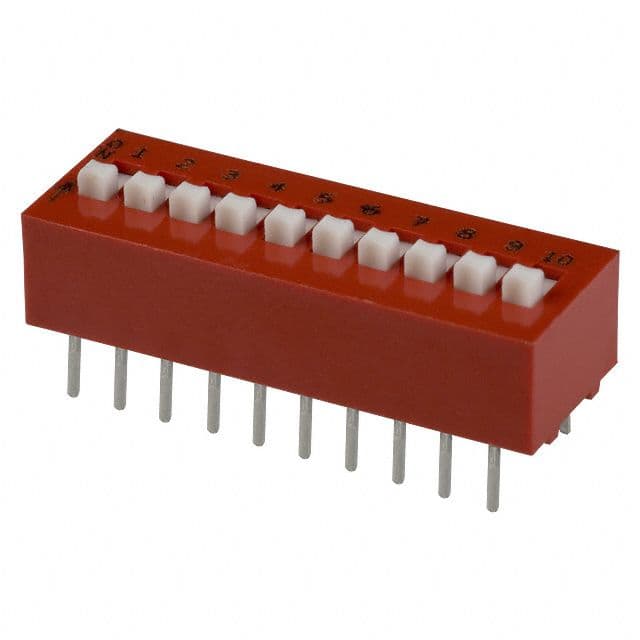

Product Images
