Surface mount DIP switch featuring a standard slide actuator and DPST throw configuration. Offers a 150mA current rating at 30VDC with a 2000-cycle electrical and mechanical life. Constructed with a thermoplastic body and copper alloy contacts plated with gold and nickel. Terminates via gull wing leads with a 2.54mm pitch, suitable for tape and reel packaging.
Current Rating150mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 78HF01GWRT technical specifications.
General
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Current Rating | 150mA |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Length | 0.28inch |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2000Cycles |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Series | 78H |
| Termination | Gull Wing |
| Throw Configuration | DPST |
| DC Rated Voltage | 30V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 78HF01GWRT Datasheet
Download the complete datasheet for Grayhill 78HF01GWRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

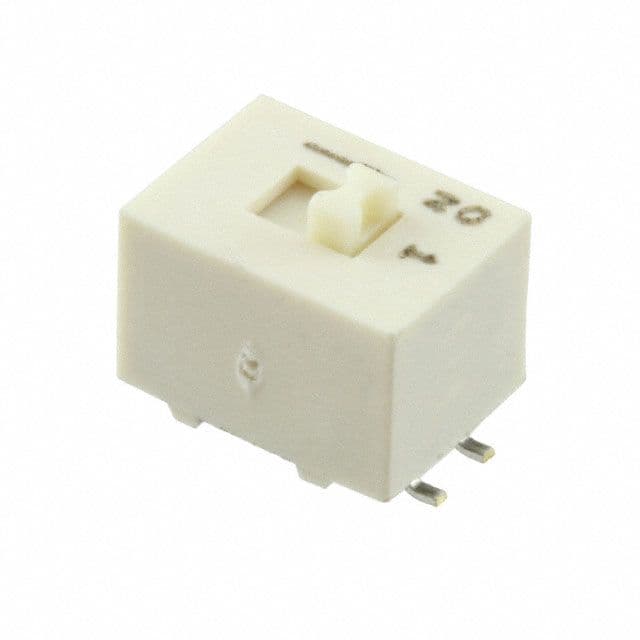

Product Images
