Single-pole, double-throw (SPDT) slide DIP switch with a latched actuator. Features a 150mA contact current rating and a 30VDC voltage rating. Designed for through-hole mounting with straight PC pin termination and a 2.54mm terminal pitch. Offers 2000 electrical and mechanical life cycles. Constructed with a thermoplastic body and copper alloy contacts plated with gold and nickel.
Current Rating150mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 78J01T technical specifications.
General
| Actuator Length | 1.27mm |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Contact Current Rating | 150mA |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Current Rating | 150mA |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Length | 0.28inch |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2000Cycles |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Positions | 1 |
| Orientation | Straight |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 78 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| DC Rated Voltage | 30V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 78J01T Datasheet
Download the complete datasheet for Grayhill 78J01T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

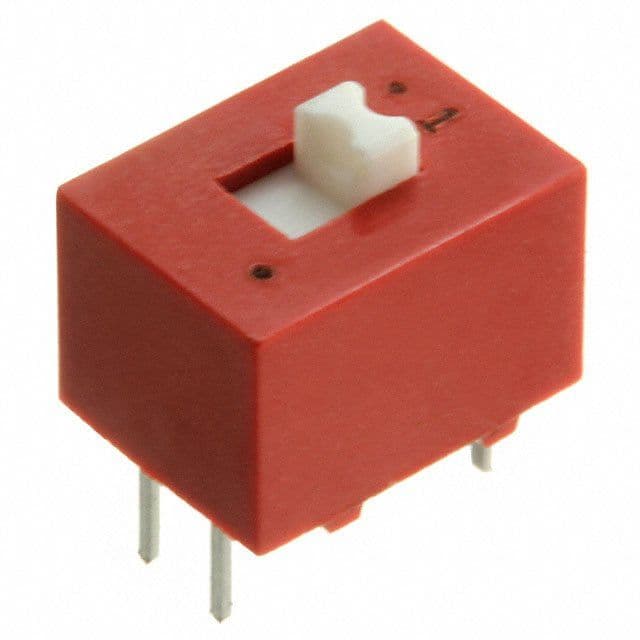

Product Images
