Four-position, single-pole, single-throw (SPST) slide DIP switch with a 0.15A current rating and 30VDC voltage rating. Features gold/nickel plated copper alloy contacts, a thermoplastic body, and through-hole mounting with straight PC pins on a 2.54mm terminal pitch. Offers 2000 electrical and mechanical cycles, operating between -40°C and 85°C. RoHS compliant.
Current Rating150mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 78RB04T technical specifications.
General
Actuator Length
0mm
Actuator Type
Slide (Standard)
Body Material
Thermoplastic
Contact Current Rating
4A
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Current Rating
150mA
Electrical Life
2000Cycles
Lead Free
Lead Free
Max Current Rating
150mA
Max Operating Temperature
85°C
Max Voltage Rating (DC)
30V
Mechanical Life
2000Cycles
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Number of Poles
1
Number of Positions
4
Number of Switches
4
Orientation
Straight
Packaging
Rail/Tube
Pitch
0.1inch
Radiation Hardening
No
RoHS Compliant
Yes
Series
78
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
30V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Grayhill 78RB04T Datasheet
Download the complete datasheet for Grayhill 78RB04T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

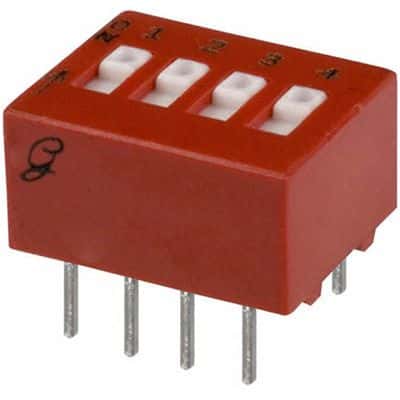

Product Images
