Technical Specifications
Grayhill 84BLN-AB2-112AN technical specifications.
General
| Actuator Material | Rubber, Silicone |
| Color | Black |
| Contact Current Rating | 10mA |
| Contact Material | Copper Alloy |
| Current Rating | 10mA |
| Depth | 59.7mm |
| Height | 9.07mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 78.7mm |
| Mechanical Life | 3000000Cycles |
| Mount | Panel, Front |
| Operating Force | 5.56N |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 84BL |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 84BLN-AB2-112AN Datasheet
Download the complete datasheet for Grayhill 84BLN-AB2-112AN to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

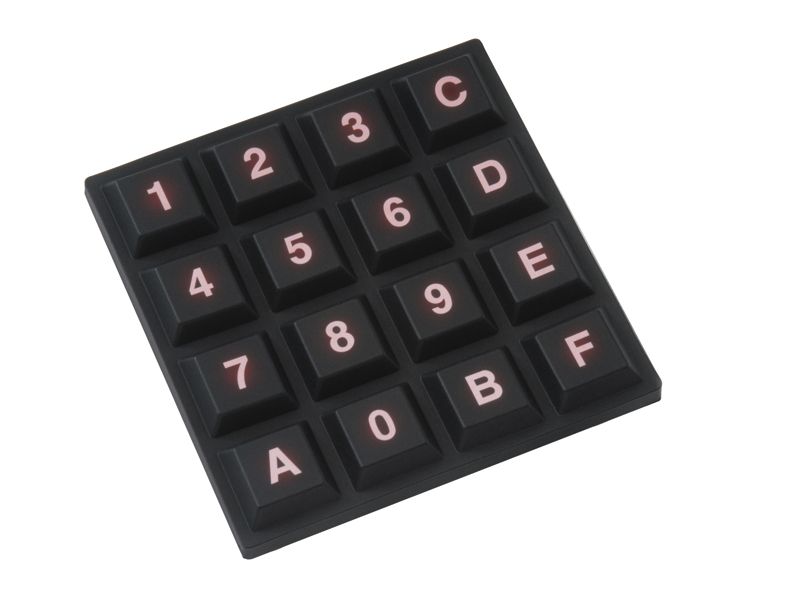

Product Images
