Technical Specifications
Grayhill 84LS-BB2-016 technical specifications.
General
| Actuator Material | Rubber, Silicone |
| Contact Material | Copper Alloy |
| Current Rating | 10mA |
| Depth | 78.74mm |
| Features | Shielded |
| Height | 9.07mm |
| Illumination Type | Non-Illuminated |
| Length | 78.74mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Front |
| Operating Force | 5.56N |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 84LS |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 84LS-BB2-016 Datasheet
Download the complete datasheet for Grayhill 84LS-BB2-016 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

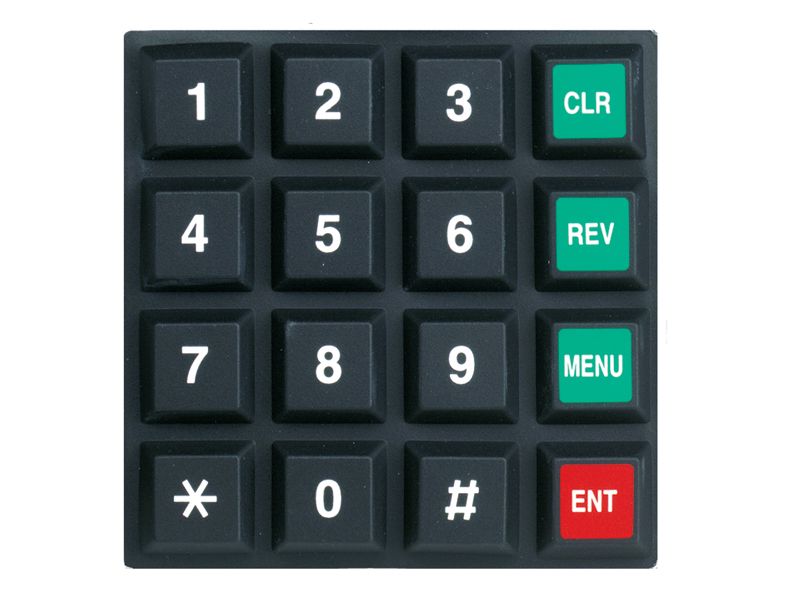

Product Images
