The Grayhill 84S-AB2-101-N is a panel mount switch with a shielded design and an operating force of 5.56N. It is rated for use in environments with IP67, waterproof, and dust tight conditions. The switch has a maximum operating temperature of 85°C and a minimum operating temperature of -55°C. It is available in a bulk packaging option and measures 78.74mm in depth, 21.26mm in height, and 59.69mm in length.
MountingPanel, Front
Quick Jump:
Technical Specifications
Grayhill 84S-AB2-101-N technical specifications.
General
| Depth | 78.74mm |
| Features | Shielded |
| Height | 21.26mm |
| Illumination Type | Non-Illuminated |
| Length | 59.69mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel, Front |
| Operating Force | 5.56N |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | 84S |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 84S-AB2-101-N Datasheet
Download the complete datasheet for Grayhill 84S-AB2-101-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

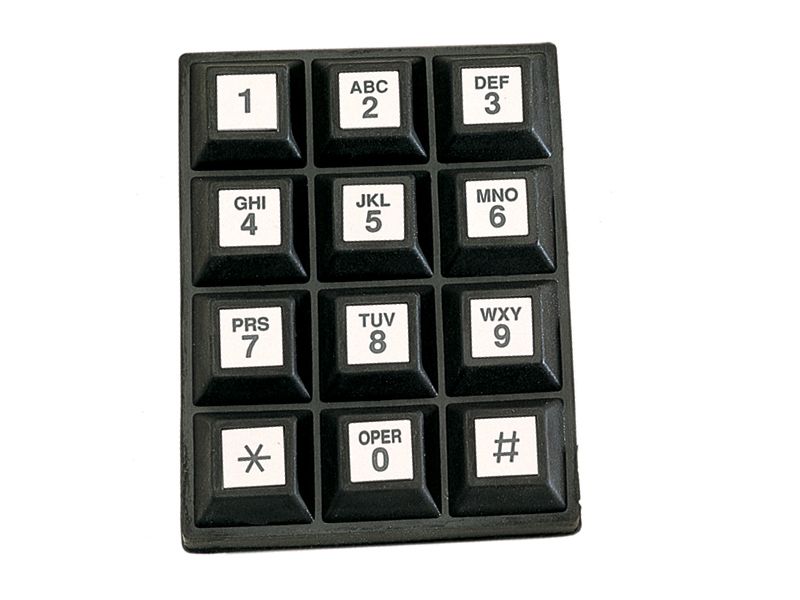

Product Images
