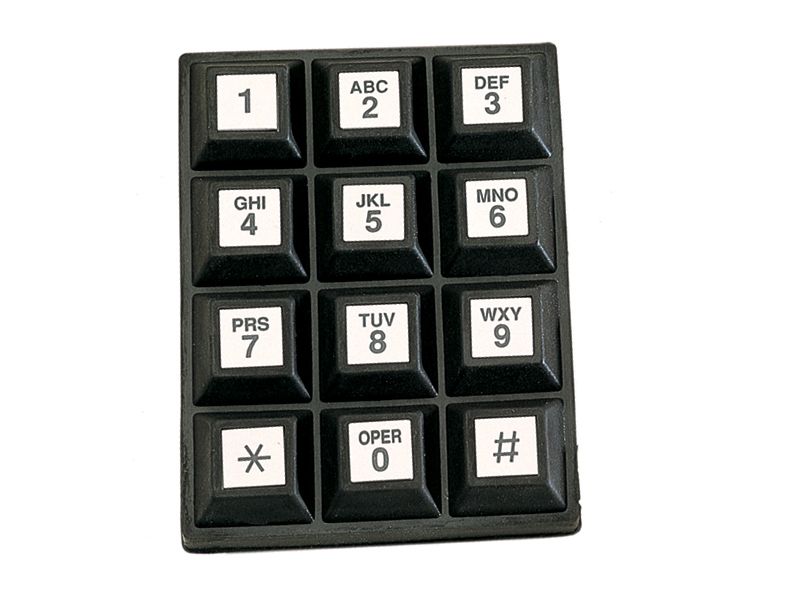

This panel mount switch features a non-illuminated design with a maximum operating temperature range of -55 to 85°C and a maximum voltage rating of 24V. It has a panel mount type with a stud termination and is rated for an operating force of 5.56N. The switch is IP67, waterproof, and dust tight, making it suitable for harsh environments. It is packaged in bulk and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 84SN-CC3-001-N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 28.58mm |
| Height | 21.89mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Contains Lead |
| Length | 28.58mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Panel, Front |
| Operating Force | 5.56N |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 84S |
| Termination | Stud |
| RoHS | Compliant |
Download the complete datasheet for Grayhill 84SN-CC3-001-N to view detailed technical specifications.
