Grayhill
86BC2-004
Keyboard Switch, 16 Switches, SPST, Momentary, 0.01A, 24VDC, Solder Terminal, Through Hole-straight,
MountingPanel, Front
Quick Jump:
Technical Specifications
Grayhill 86BC2-004 technical specifications.
General
Depth
76.2mm
Height
9.14mm
Illumination Type
Non-Illuminated
Length
68.58mm
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Panel, Front
Operating Force
3.43N
Packaging
Bulk
Ratings
IP40
RoHS Compliant
Yes
Series
86
Compliance
RoHS
Compliant
Datasheet
Grayhill 86BC2-004 Datasheet
Download the complete datasheet for Grayhill 86BC2-004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

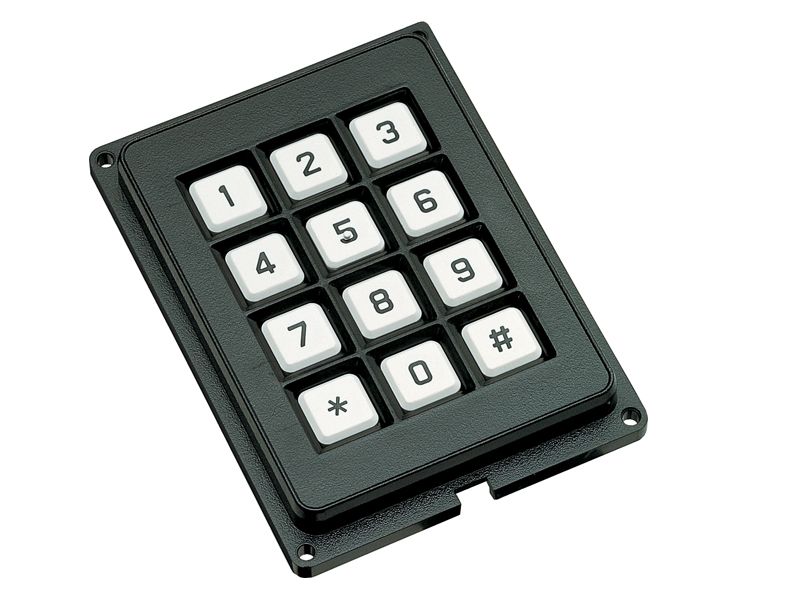

Product Images
