10-position SPST slide DIP switch with latched actuation. Features gold/nickel plated copper alloy contacts, a 0.1A (150mA) max current rating, and a 30VDC max voltage rating. Through-hole mounting with straight PC pins and a 2.54mm terminal pitch. Operates across a -40°C to 85°C temperature range with an electrical and mechanical life of 2000 cycles. RoHS compliant and washable.
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Grayhill 90GB10ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Grayhill 90GB10ST technical specifications.
General
| Actuator Length | 0mm |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Number of Positions | 10 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 90GB |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 90GB10ST Datasheet
Download the complete datasheet for Grayhill 90GB10ST to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

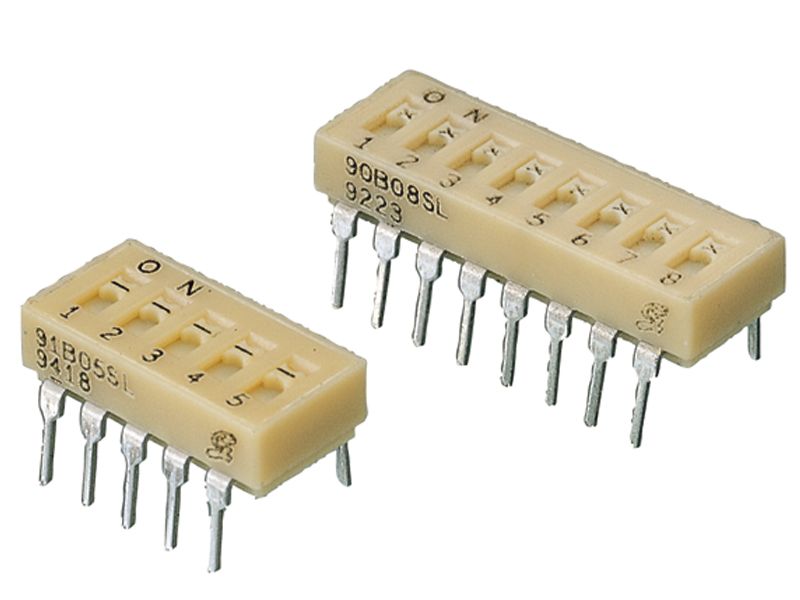

Product Images
