2-position SPST slide DIP switch for surface mount applications, featuring a gull wing termination and 2.54mm terminal pitch. Offers a 0.1A max current rating at 6VDC, with a contact current rating of 3A and a DC rated voltage of 24V. Constructed with a thermoplastic body and gold/nickel plated copper alloy contacts, this washable switch boasts an electrical and mechanical life of 2000 cycles. Operating temperature range is -40°C to 85°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 90HBW02PT technical specifications.
General
Actuator Length
0mm
Actuator Type
Slide (Standard)
Body Material
Thermoplastic
Contact Current Rating
3A
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Depth
10.03mm
Electrical Life
2000Cycles
Lead Free
Lead Free
Lead/Base Style
Gull Wing
Length
6.9mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Max Voltage Rating (DC)
30V
Mechanical Life
2000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
2
Number of Positions
2
Number of Switches
2
Orientation
Straight
Packaging
Rail/Tube
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
90HB
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
Grayhill 90HBW02PT Datasheet
Download the complete datasheet for Grayhill 90HBW02PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

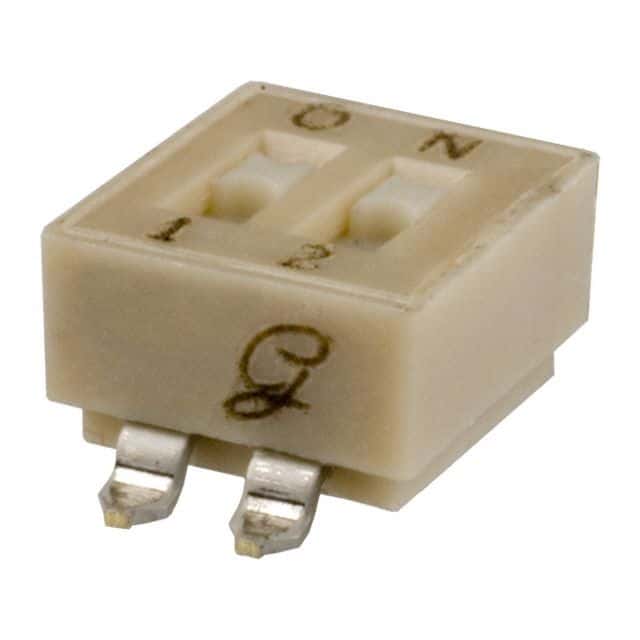

Product Images
