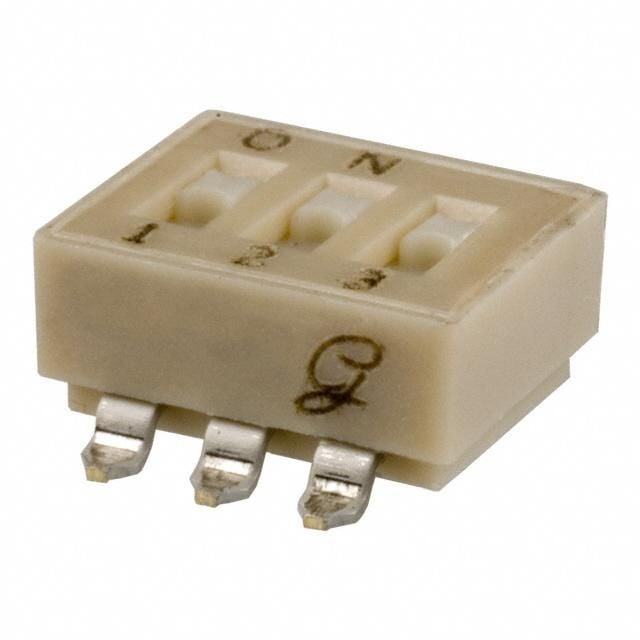

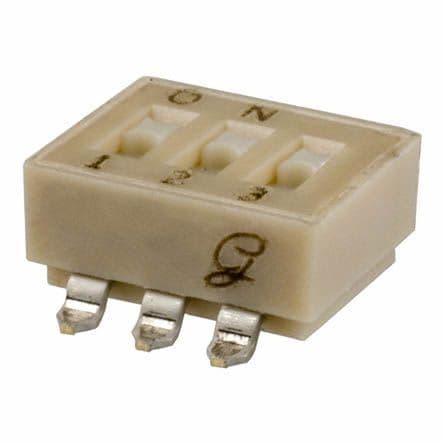

3-position SPST slide DIP switch featuring a latched actuator and surface mount termination with gull wing leads. Offers a 0.1A contact current rating at 6VDC, with a maximum voltage rating of 30VDC and a maximum current rating of 100mA. Constructed with a thermoplastic body and copper alloy contacts plated with gold and nickel, it boasts an electrical and mechanical life of 2000 cycles. Operating temperature range is -40°C to 85°C, with a terminal pitch of 2.54mm and a pitch of 0.1 inch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 90HBW03PT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 0mm |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Capacitance | 2pF |
| Contact Current Rating | 3A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Depth | 10.03mm |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 9.4mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 2000Cycles |
| Mount | Surface Mount |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Number of Switches | 3 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 90HB |
| Terminal Pitch | 2.54mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
| Washable | Yes |
| RoHS | Compliant |
